Z390 Phantom Gaming-ITX/ac

• Gaming Armor
  Power
  - Hi-Density Power Connector
  Memory
  - 15μ Gold Contact in DIMM Slots
  VGA Card
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  Internet
  - Intel^® LAN
  Cooling
  - 8 Layer PCB
  - 4 x 2oz copper
  - Heat Pipe Design
  Audio
  - Creative Sound Blaster™ Cinema 5
• Einzigartige Features
  ASRock USB 3.1 Gen2
  - ASRock USB 3.1 Gen2 Type-A Ports (10 Gb/s)
  ASRock Super Alloy
  - Premium 60A Power Choke
  - 60A Dr.MOS
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - Matte Black PCB
  - High Density Glass Fabric PCB
  Intel^® 802.11ac WiFi
  ASRock Steel Slots
  ASRock Full Coverage M.2 Heatsink
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports 9th and 8th Gen Intel^® Core™ Processors (Socket 1151)
  - Digi Power design
  - 7 Power Phase design
  - Supports Intel^® Turbo Boost 2.0 Technology
  - Supports Intel^® K-Series unlocked CPUs
  - Supports ASRock BCLK Full-range Overclocking
• Chipsatz
  - Intel^® Z390
• Arbeitsspeicher
  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 4500+(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB*
  - Supports Intel^® Extreme Speicherprofile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots



  *Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows^® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - DRAM, VTT DDR, PCH +1.0, VCCIO, VCCPLL_V5, VCCST_SFR, VCCSA, VCCPLL, VCCPLL_V4, V_PEGRCOMP Voltage Multi-adjustment
• Grafik
  - Supports Intel^® UHD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® UHD Graphics
  - DirectX 12
  - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
  - Three graphics output options: HDMI, DisplayPort 1.2 and Intel^® Thunderbolt™ 3
  - Supports Triple Monitor
  - Supports HDMI 2.0 with max. Auflösung up to 4K x 2K (4096x2160) @ 60Hz
  - Supports DisplayPort 1.2 with max. Auflösung up to 4K x 2K (4096x2304) @ 60Hz
  - Supports Intel^® Thunderbolt™ 3 with max. Auflösung up to 4K x 2K (4096x2304) @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
  - Supports HDR (High Dynamic Range) with HDMI 2.0
  - Supports HDCP 2.2 with HDMI 2.0, DisplayPort 1.2 and Intel^® Thunderbolt™ 3
  - Supports 4K Ultra HD (UHD) playback with HDMI 2.0, DisplayPort 1.2 and Intel^® Thunderbolt™ 3



  *Intel^® UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden.
• Audio
  - 7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - Nichicon Fine Gold Series Audio Caps
  - 120dB SNR DAC with Differential Amplifier
  - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  - Pure Power-In
  - Direct Drive Technology
  - PCB Isolate Shielding
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - Gold Audio Jacks
  - 15μ Gold Audio Connector
  - Supports Creative Sound Blaster™ Cinema 5
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Giga PHY Intel^® I219V
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Drahtloses LAN
  - Intel^® 802.11ac WiFi Module
  - Supports IEEE 802.11a/b/g/n/ac
  - Supports Dual-Band (2.4/5 GHz)
  - Supports high speed wireless connections up to 1733Mbps
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.0 + High speed class II
  - Supports MU-MIMO
• Steckplätze
  - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
  - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT) (on the rear I/O)**
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  *Unterstützt PCIe-Riser-Karten, um einen x16-Slot zu zwei x8-Slots auszubauen.
  Unterstützt NVMe-SSD als Boot-Festplatte

  **Supports CNVio1 WiFi module(Intel^® Wireless-AC 9560/9462/9461) only.
• Speicherplatz
  - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*
  - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
  - 1 x Ultra M.2 Socket (M2_2), unterstützt M.2-Module mit SATA3 (6,0 Gb/s) und M.2-Module mit PCI-Express (Gen3 x4, 32 Gb/s) vom M-Typ 2260/2280.**



  *Wenn der Anschluss M2_1 von einem SATA-M.2-Gerät besetzt ist, wird der Anschluss SATA3_1 deaktiviert.

  **Supports Intel^® Optane™ Technology
  Unterstützt NVMe-SSD als Boot-Festplatte
• Anschluss
  - 1 x Chassis Intrusion Header

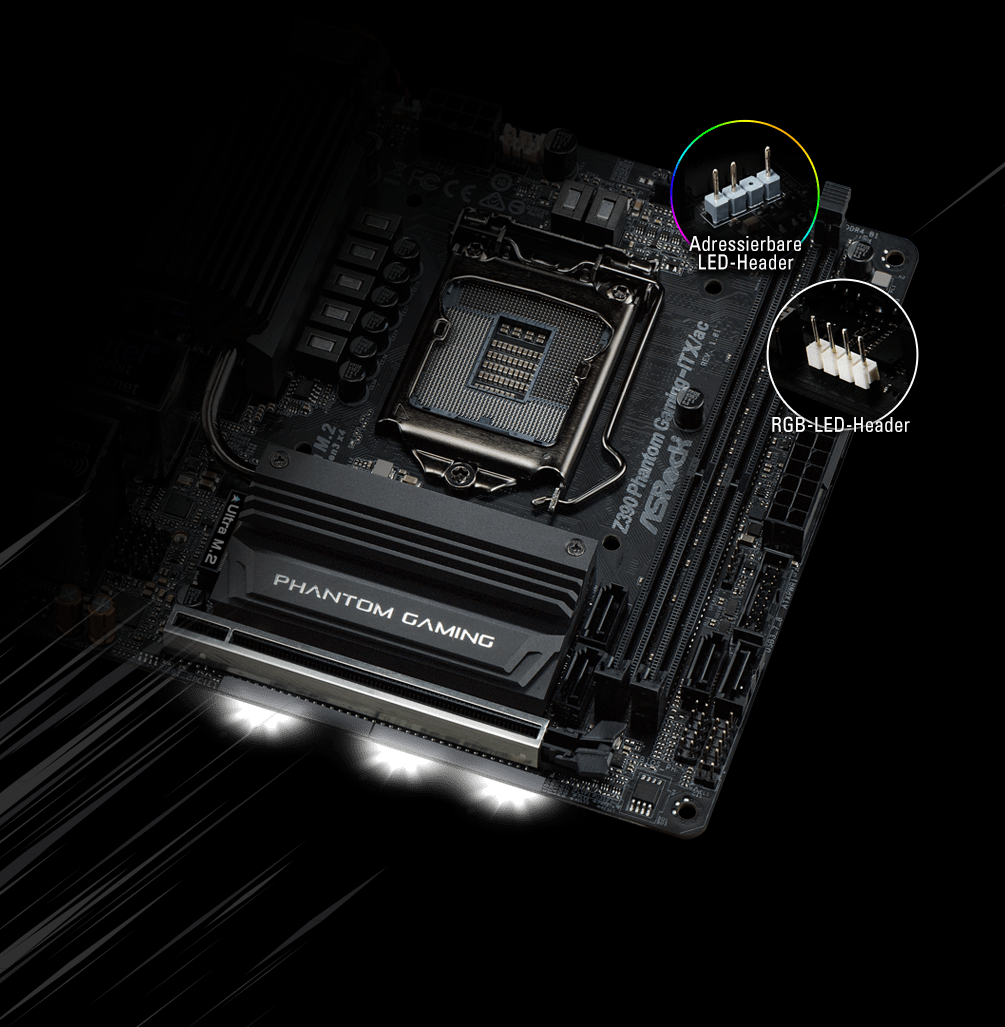

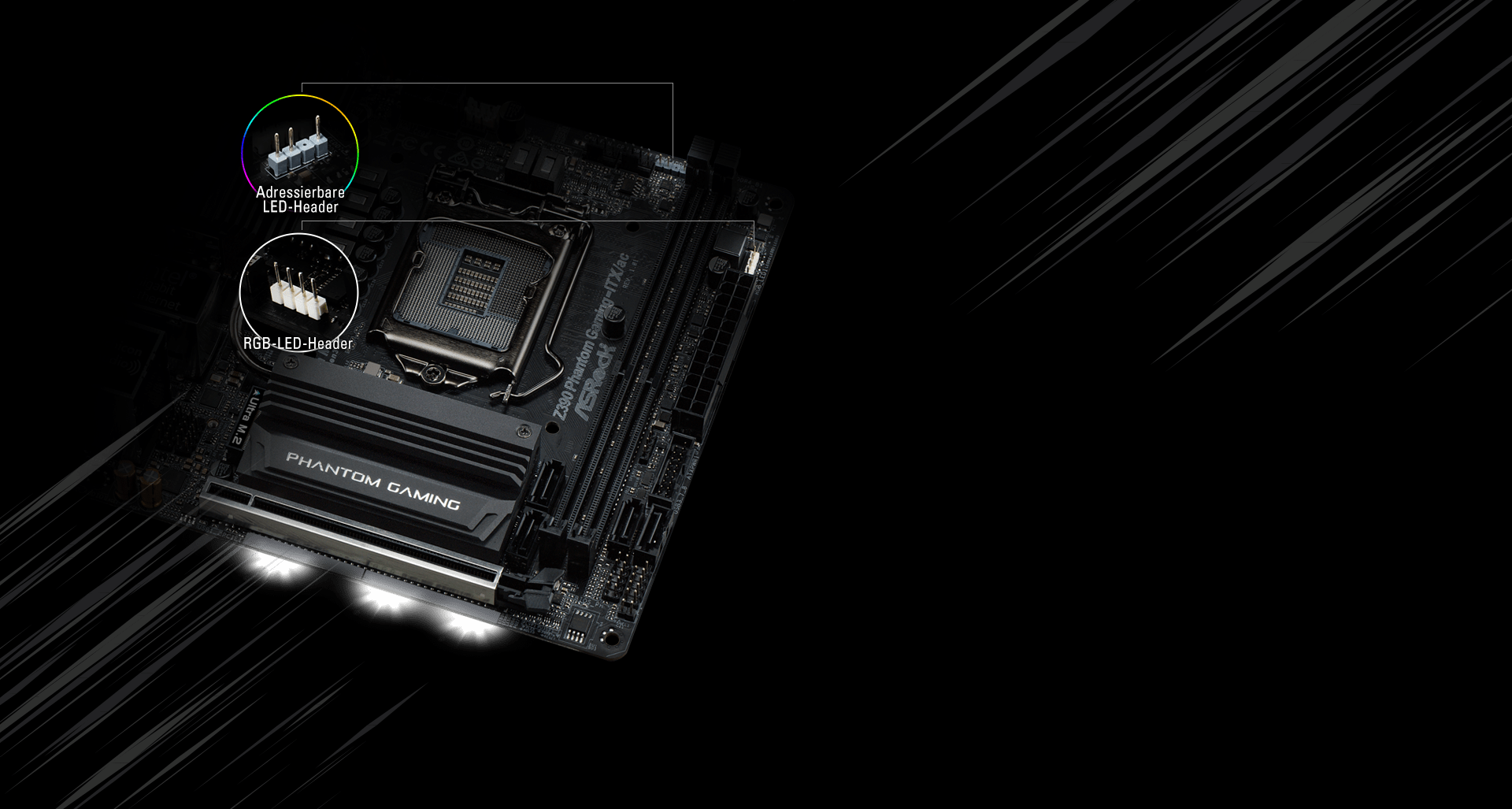

  - 1 x RGB LED Header*
  - 1 x Addressable LED Header**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 1 x Chassis Fan Connector (4-pin)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)



  *Unterstützt insgesamt bis zu 12V/3A, 36W-LED-Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  ***Der CPU-Lüfteranschluss unterstützt CPU-Lüfter mit einer Leistung von maximal 1 Ampere (12 Watt).

  ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  Die Anschlüsse CPU_OPT/W_PUMP können automatisch erkennen, ob ein Lüfter mit drei oder vier Pins genutzt wird.

  *****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
• Blende
  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.2
  - 1 x Intel^® Thunderbolt™ 3 (Compatible with USB 3.1 Gen2 and USB-C Display)*
  - 1 x Optical SPDIF Out Port
  - 4 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
  - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - 1 x Clear CMOS Button
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)



  *Unterstützt das Aufladen mittels USB PD 2.0 mit bis zu 12V@3A (36W)
• Software und UEFI
  Software
  - ASRock Phantom Gaming-Einstellung
  - ASRock Polychrome SYNC
  - ASRock Key Master
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Sofort-Flash
  - ASRock Internet Flash
  - ASRock Easy RAID Installer



  *Diese Tools können im Live Update & APP Shop heruntergeladen werden.
• Produktzubehör
  - I/O Shield
  - 2 x SATA Data Cables
  - 1 x ASRock WiFi 2.4/5 GHz Antenna
  - 2 x Screws for M.2 Sockets
• Hardware überwachung
  - Temperature Sensing: CPU, CPU/Water Pump, Chassis Fans
  - Fan Tachometer: CPU, CPU/Water Pump, Chassis Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis Fans
  - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis Fans
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST
• Formfaktor
  - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  - 8 Layer PCB
  - 4 x 2oz copper
• Betriebssystem
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Zertifizierungen
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
