X570 Phantom Gaming-ITX/TB3

• Gaming Armor
  Power
  - Hi-Density Power Connectors (24 pin and 8 pin)
  Memory
  - 15μ Gold Contact in DIMM Slots
  VGA Card
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  Internet
  - Intel^® LAN
  Cooling
  - 2oz Copper PCB
  Audio
  - Creative Sound Blaster™ Cinema 5
• Cechy szczególne
  ASRock USB 3.2 Gen2
  - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
  - ASRock Thunderbolt™ 3 Type-C USB 3.2 Gen2 Port (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol)
  ASRock Super Alloy
  - Premium 60A Power Choke
  - 60A Dr.MOS
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - I/O Armor
  - Matte Black PCB
  - High Density Glass Fabric PCB
  - 2oz Copper PCB
  Intel^® 802.11ax WiFi
  ASRock Steel Slot Gen4
  ASRock Hyper M.2 (PCIe Gen4x4)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports AMD AM4 Socket Ryzen™ 2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
  - Supports Intel^® LGA 115x mounting hole and Cooler
  - Digi Power design
  - 10 Power Phase design



  *Please refer to CPU support list for details.
• Chipset
  - AMD X570
• Pamięć
  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series APUs (Cezanne) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series APUs (Renoir) support DDR4 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  - Max. capacity of system memory: 64GB**
  - Supports Ekstremalny Profil Pamięci (XMP) memory modules
  - 15μ Gold Contact in DIMM Slots



  *For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.
  Please refer to below table for AMD non-XMP memory frequency support.

  Ryzen Series CPUs (Vermeer):


  Ryzen Series CPUs (Matisse):


  Ryzen Series APUs (Cezanne):


  Ryzen Series APUs (Renoir):


  Ryzen Series CPUs (Pinnacle Ridge):


  Ryzen Series CPUs (Picasso):


  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Z powodu ograniczeń system operacyjnego, rzeczywisty rozmiar pamięci może być mniejszy niż 4GB dla rezerwacji przez system Windows^® 32-bit. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
• Karta graficzna
  - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  - DirectX 12, Pixel Shader 5.0
  - Domyślna ilość współdzielonej pamięci to 2GB. Maksymalna ilość współdzielonej pamięci to 16GB.**
  - Supports HDMI 2.0 with max. Rozdzielczośćup to 4K x 2K (4096x2160) @ 60Hz
  - Supports DisplayPort 1.4 Input with max. Rozdzielczośćup to 4K x 2K (4096x2160) @ 120Hz***
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
  - Supports HDR (High Dynamic Range) with HDMI 2.0
  - Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.4 Ports
  - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports



  *Wsparcie może się różnić w zależności od CPU

  **Maksymalna współdzielona pamięć 16GB wymaga 32GB pamięci w systemie.

  ***To use a Type-C monitor, connect your graphics card to this DisplayPort 1.4 Input port with a DisplayPort cable.
• Audio
  - 7.1 CH HD Audio with Ochrona Treści (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - Nichicon Fine Gold Series Audio Caps
  - Pure Power-In
  - Direct Drive Technology
  - PCB Isolate Shielding
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - Gold Audio Jacks
  - 15μ Gold Audio Connector
  - Supports Creative Sound Blaster™ Cinema 5
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - GigaLAN Intel^® I211AT
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Wireless LAN
  - Intel^® 802.11ax WiFi Module
  - Supports IEEE 802.11a/b/g/n/ax
  - Supports Dual-Band (2.4/5 GHz)
  - Supports WiFi6 802.11ax (2.4Gbps)
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.2 + High speed class II
  - Supports MU-MIMO
• Sloty
  AMD Ryzen series CPUs (Vermeer, Matisse)
  - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
  AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
  - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
  AMD Ryzen series CPUs (Picasso)
  - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*

  - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  *Wsparcie dla kart PCIe riser dla rozszerzenia jednego slotu x16 do dwóch slotów x8, jeśli zainstalujesz procesor serii AMD Ryzen
  Obsługa bootowania z dysków NVMe SSD
• Magazynowanie
  - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  - 1 x Hyper M.2 Socket, supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*



  *Obsługa bootowania z dysków NVMe SSD
  NVMe SSD is not supported with AMD Athlon™ 3000G Processors
  Support RAID 0/1/10
• Złącza

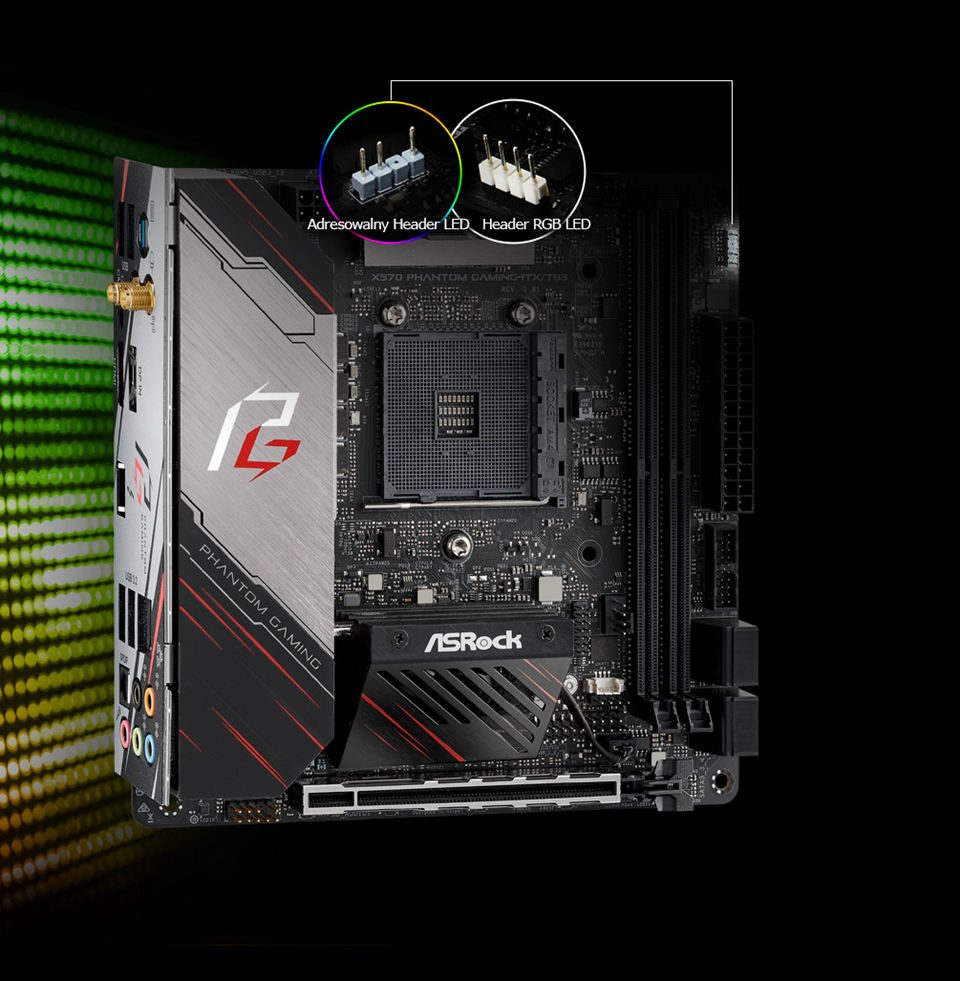

  - 1 x RGB LED Header*
  - 1 x Addressable LED Header**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
  - 1 x SPI TPM Header*******



  *Obsługa Paska LED aż do 12V/3A, 36W

  **Supports in total up to 5V/3A, 15W LED Strip

  ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

  ******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI
• Tylny panel
  - 2 x Antenna Ports (on I/O Panel Shield)
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4 Input
  - 1 x Optical SPDIF Out Port
  - 1 x USB 3.2 Gen2 Thunderbolt™ 3 Type-C Port (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection)
  - 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection)
  - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - 1 x Clear CMOS Button
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Oprogramowanie i UEFI
  Software
  - ASRock Funkcja Phantom Gaming Tuning
  - ASRock Polychrome SYNC
  - ASRock Key Master
  UEFI
  - ASRock Full HD UEFI
  - ASRock Funkcja Instant Flash



  *Te narzędzia można pobrać z Live Update & APP Shop.
• Akcesoria
  - 2 x SATA Data Cables
  - 1 x ASRock WiFi 2.4/5 GHz Antenna
  - 1 x Screw for M.2 Socket
• Hardware Monitor
  - Temperature Sensing: CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Tachometer: CPU/Water Pump, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU/Water Pump, Chassis/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
• Wymiary
  - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  - 2oz Copper PCB
• System operacyjny
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certyfikaty
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
