X399 Phantom Gaming 6

• Gaming Armor
  Memory
  - 15μ Gold Contact in DIMM Slots
  VGA Card
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1, PCIE2 and PCIE3)
  Internet
  - Phantom Gaming 2.5G LAN
  - Intel^® LAN
  Cooling
  - XXL Aluminum Alloy Heatsink
  - 8 Layer PCB
  - Heat Pipe Design
  Audio
  - Creative Sound Blaster™ Cinema 5
• Einzigartige Features
  ASRock USB 3.1 Gen2
  - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
  - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
  ASRock Super Alloy
  - XXL Aluminum Alloy Heatsink
  - Premium 60A Power Choke
  - 60A Dr.MOS
  - Combo Caps (Nichicon 12K Black Caps)
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - Matte Black PCB
  - High Density Glass Fabric PCB
  ASRock Phantom Gaming 2.5G LAN
  ASRock Steel Slots
  ASRock Full Coverage M.2 Heatsink
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
  - Supports CPU up to 180W
  - Digi Power design
  - 8 Power Phase design
• Chipsatz
  - AMD X399
• Arbeitsspeicher
  - Quad Channel DDR4 Memory Technology
  - 8 x DDR4 DIMM Slots
  - Supports DDR4 3400+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM)
  - Max. capacity of system memory: 128GB*
  - 15μ Gold Contact in DIMM Slots



  *Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows^® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - VCORE, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, +1.8VSB, VDDCR_SOC_S5, PROM 2.5V, Voltage Multi-adjustment
• Grafik
  - n/a
• Audio
  - 7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - Nichicon Fine Gold Series Audio Caps
  - 120dB SNR DAC with Differential Amplifier
  - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  - Pure Power-In
  - Direct Drive Technology
  - PCB Isolate Shielding
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - Gold Audio Jacks
  - 15μ Gold Audio Connector
  - Supports Creative Sound Blaster™ Cinema 5
• LAN
  1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG)
  - Supports Phantom-Gaming-LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE

  1 x Gigabit LAN 10/100/1000 Mb/s (Intel^® I211AT)
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Steckplätze
  - 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE2); triple at x16 (PCIE1) / x16 (PCIE2) / x16 (PCIE3))*
  - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
  - Supports NVIDIA^® Quad SLI™, 3-Way SLI™ and SLI™
  - 1 x M.2 Socket (Key E), supports WLAN-BT-Modul nach Typ 2230
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1, PCIE2 and PCIE3)



  *Unterstützt NVMe-SSD als Boot-Festplatte
• Speicherplatz
  - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*



  *Unterstützt NVMe-SSD als Boot-Festplatte
  Supports ASRock U.2 Kit
• Anschluss
  - 1 x TPM Header
  - 1 x Power LED and Speaker Header

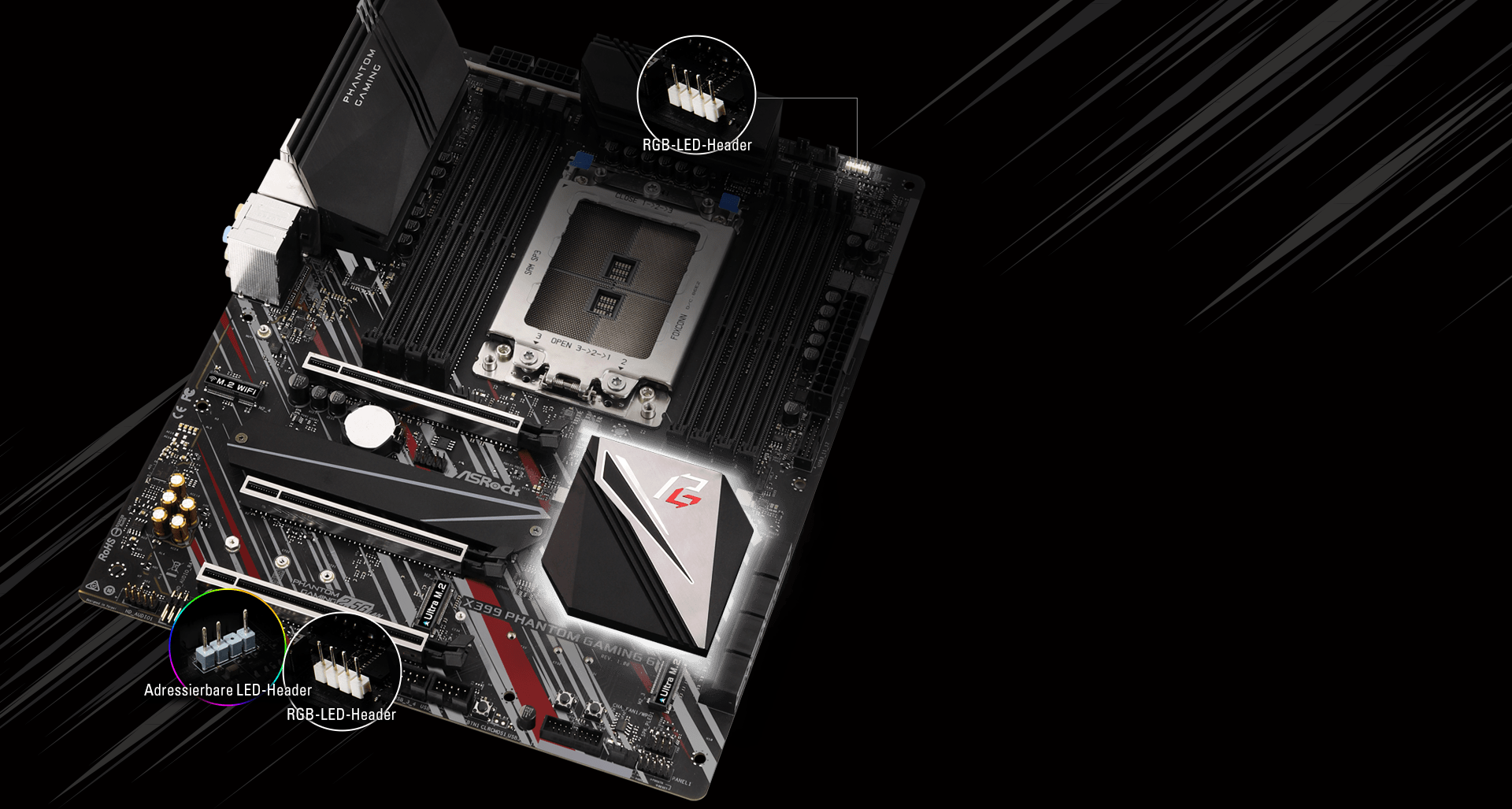

  - 2 x RGB LED Headers*
  - 1 x Addressable LED Header**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 2 x 8 pin 12V Power Connectors
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)******
  - 1 x Right Angle Front Panel Audio Connector
  - 1 x AMD LED Fan USB Header
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
  - 1 x Clear CMOS Button
  - 1 x Power Button with LED
  - 1 x Reset Button with LED



  *Support in total up to 12V/3A, 36W LED Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  ***Der CPU-Lüfteranschluss unterstützt CPU-Lüfter mit einer Leistung von maximal 1 Ampere (12 Watt).

  ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

  ******Connect the audio device to either one of the audio connectors.
• Blende
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x Optical SPDIF Out Port
  - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  - 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Software und UEFI
  Software
  - ASRock Phantom Gaming-Einstellung
  - ASRock Phantom-Gaming-LAN
  Software
  - ASRock Polychrome RGB
  - ASRock Key Master*
  UEFI
  - ASRock Full HD UEFI
  - ASRock Sofort-Flash
  - ASRock Easy RAID Installer



  *Diese Tools können im Live Update & APP Shop heruntergeladen werden.
• Produktzubehör
  - I/O Shield
  - 4 x SATA Data Cables
  - 1 x ASRock SLI_HB_Bridge_2S Card
  - 4 x Screws for M.2 Sockets
  - 1 x WiFi Bracket
• Hardware überwachung
  - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDCR_SOC
• Formfaktor
  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 8 Layer PCB
• Betriebssystem
  - Microsoft^® Windows^® 10 64-bit
• Zertifizierungen
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

* This product has reached EOL (End of Life) and was discontinued in 2021/Jul. Technical and security-related support will continue for up to 6 years after EOL, subject to supplier support availability.

Die Spezifikationen können ohne vorherigen Hinweis geändert werden. Die Marken und Produktnamen sind Schutzmarken der jeweiligen Firmen. Alle Konfigurationen die von den original Spezifikationen abweichen werden nicht garantiert.

Das oben abgebildete User-Interface ist ein Referenzbeispiel. Das tatsächliche User-Interface kann von der Abbildung abweichen.

The third-party software is developed and maintained by a third-party provider and is not developed by ASRock. For software updates, security notices, and technical support, please refer to the respective software provider.
