PG-850G
Full Modular
PRODUCT BRIEF:
- 80 PLUS® GOLD Certified
- Cybenetics GOLD and LAMBDA A Certified
- ATX3.1 & PCIe5.1 Ready
- Fully Modular Cable Design
- Native 12V-2x6 Connector Dual Color Design with TempGuard
- 100% Highly Reliable Japanese Capacitors
- 135mm Striped Axial FDB Fan
- iCool Intelligent Fan Control Mode
- 5V BOOST Mode
- Remarkable 10-Year Warranty
.png)
.png)
.png)
.png)
.png)
.png)
- Overview
- Specification
- Gallery
- Support
- Where to Buy
POWERFUL FUTURE
BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.
Native PCIe 12V-2x6 Cable
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.
+5V BOOST Mode
Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.
iCOOL Intelligent Fan Control Mode
●iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
●iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
●iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
80 PLUS & CYBENETICS CERTIFIED
Designed for gaming enthusiasts, the Phantom Gaming series power supply unit with 80 PLUS Gold efficiency certification and Cybenetics Platinum & Gold ratings, along with LAMBDA A acoustic certification, it guarantees superior energy efficiency and low noise operation.
CYBENETICS LAMBDA A
The Phantom Gaming series power earning the prestigious Cybenetics Lambda A certification. This recognition underscores the Phantom Gaming series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.
Infineon CoolMOS
The industrial-leading components deliver high efficiency and reliability.
Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

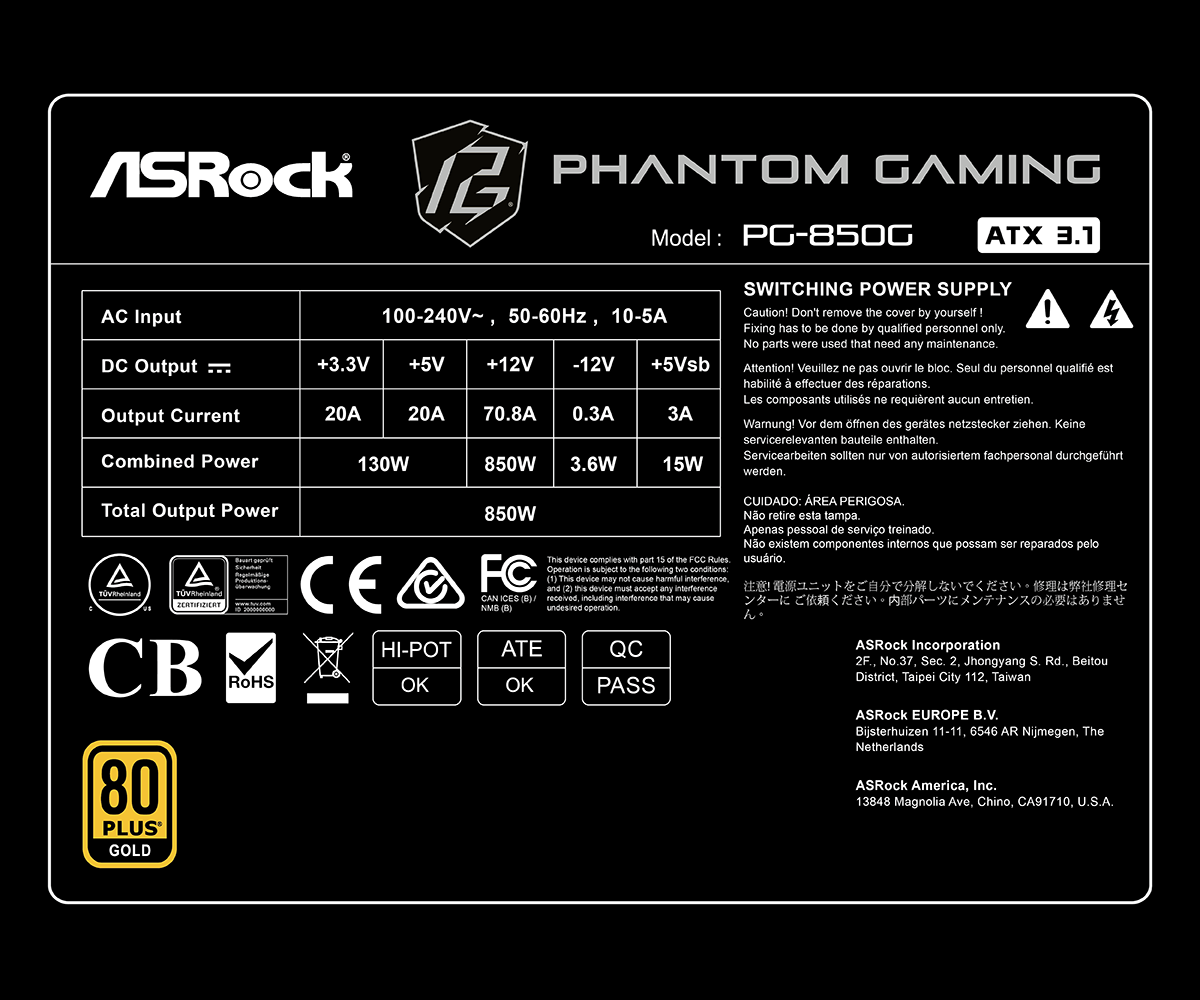

- 80 Plus Efficiency- GOLDCybenetics (ETA/LAMBDA)- GOLD / AATX 12V Version- ATX 3.1ATX- ATX 3.1Continuous 12V output- 70.8AWarranty (Years)- 10Dimensions(L x W x H)- 150mm x 150mm x 86mmFan- 135mm Striped Axial FDB FaniCOOL MODE- Yes (Switch)Protections- OCP, SCP, OVP, UVP, OTP, OPPCapacitors- All Japanese5V BOOST- Yes (Switch)PCIe 5.1 Cable TempGuard- YesTotal Power Excursion- 220%MTBF (Hours)@25°C- 100,000Cable Type- 24pin & 12+4pin: Sleeved
- Others: Individual Braided PatternMotherboard cable (24pin)- 1EPS 12V CPU connectors (4+4pin)- 2PCIe5.1 connectors(12+4pin) Dual Color- 1PCIe connectors (6+2pin)- 44-pin Peripheral connectors- 3SATA 5-pin connectors- 9
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
