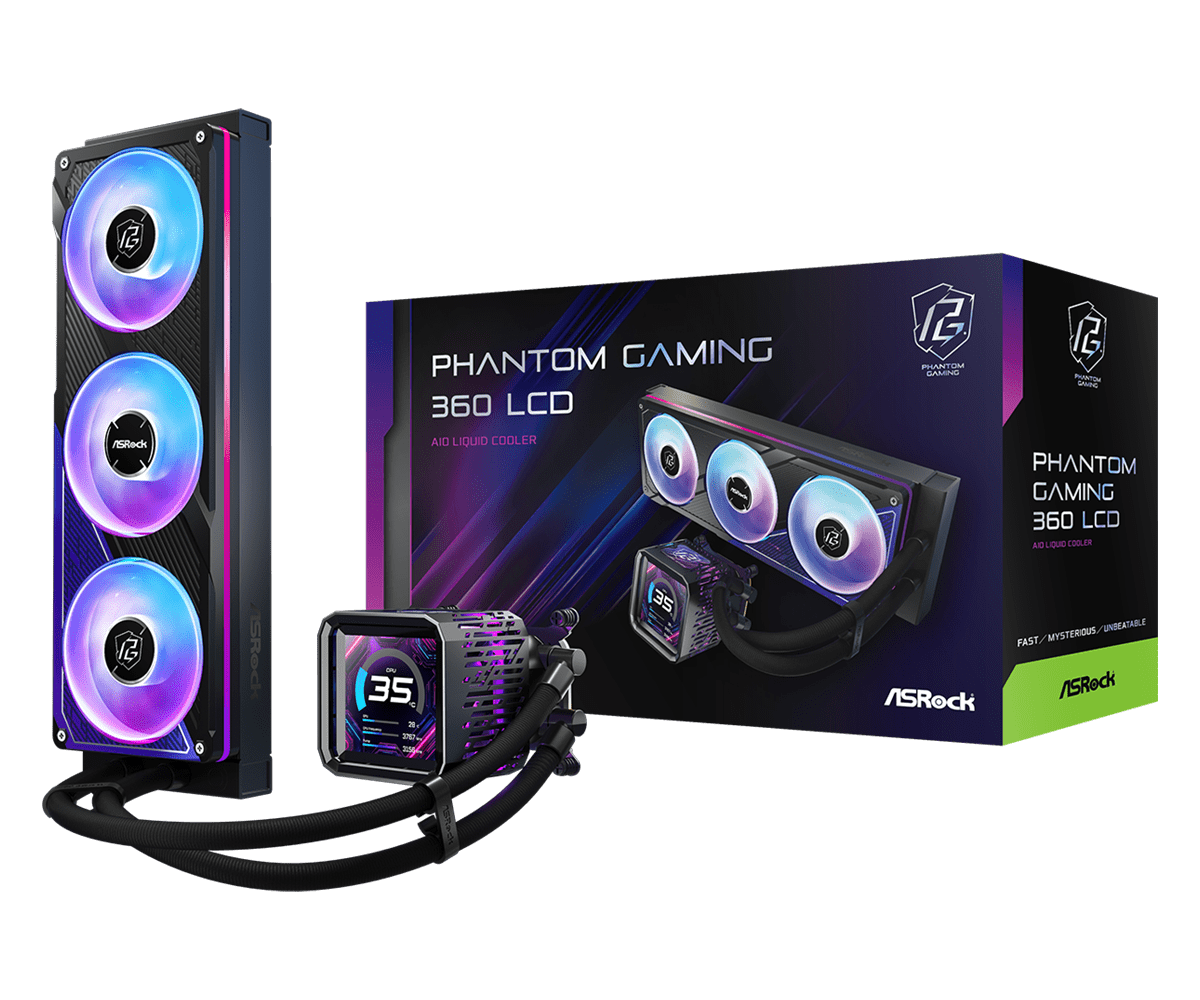

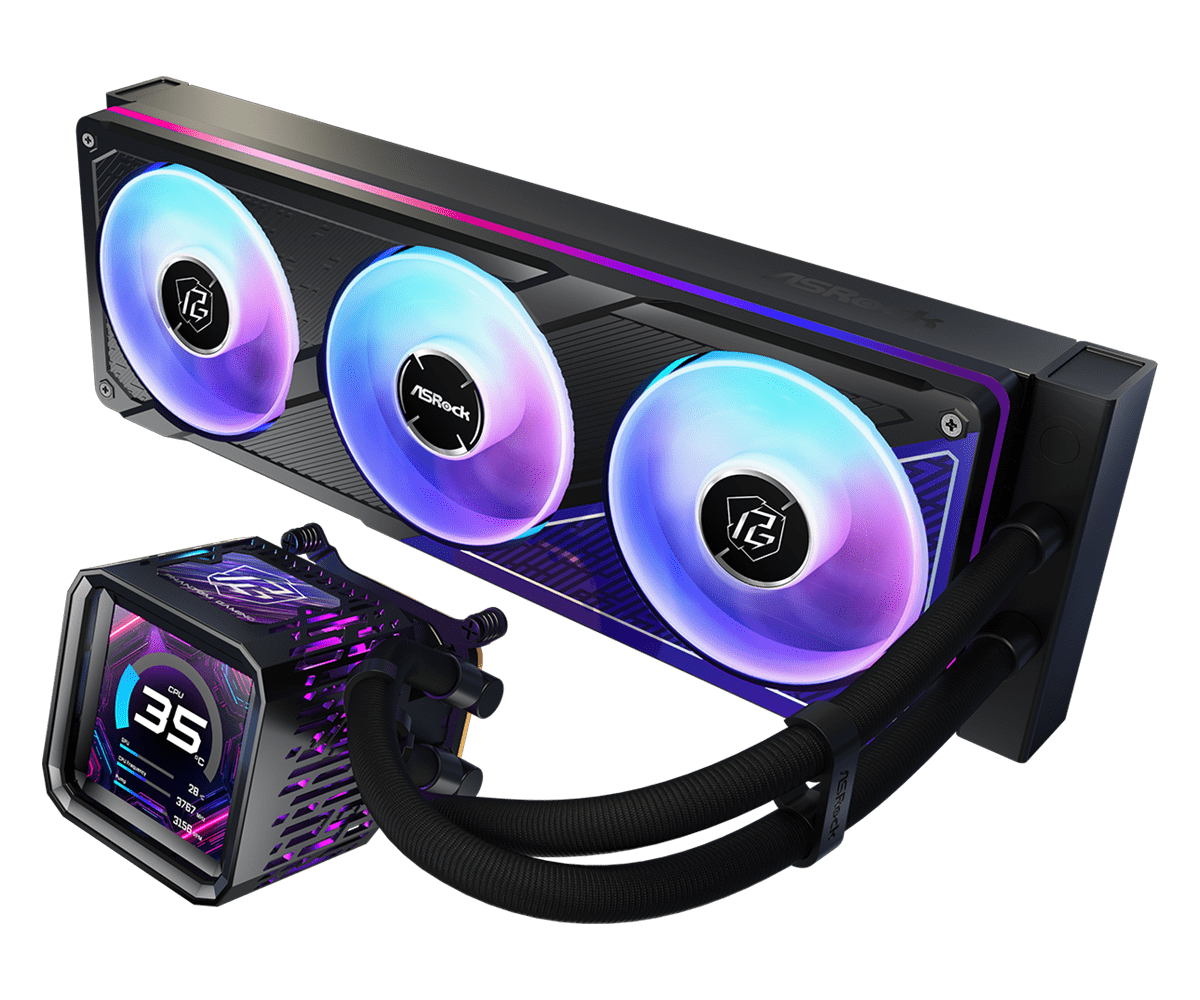

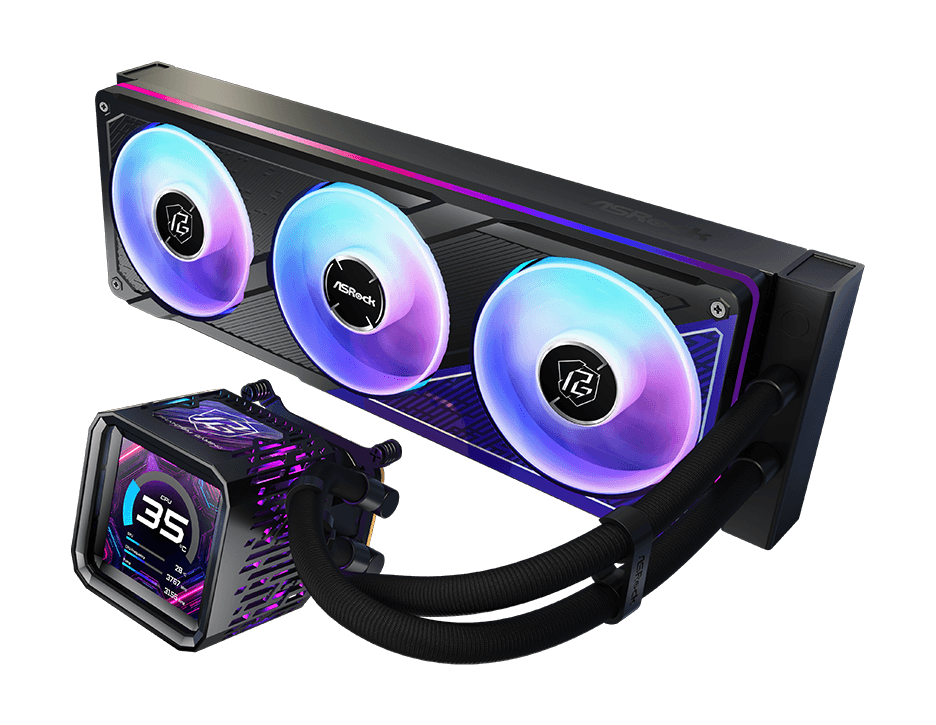

Phantom Gaming 360 LCD
The Phantom Gaming AIO liquid cooler embodies the explosive spirit of performance and style. With a 3.4" LCD display, vivid ARGB lighting, and performance-optimized cooling design, it unleashes raw power and dynamic visual energy to elevate every build.
- Overview
- Specification
- Gallery
- Support
- Where to Buy
FAST
MYSTERIOUS
UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
Visual Experience

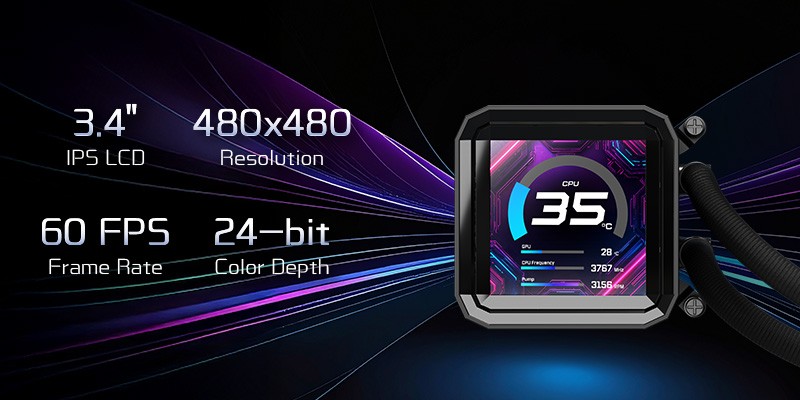

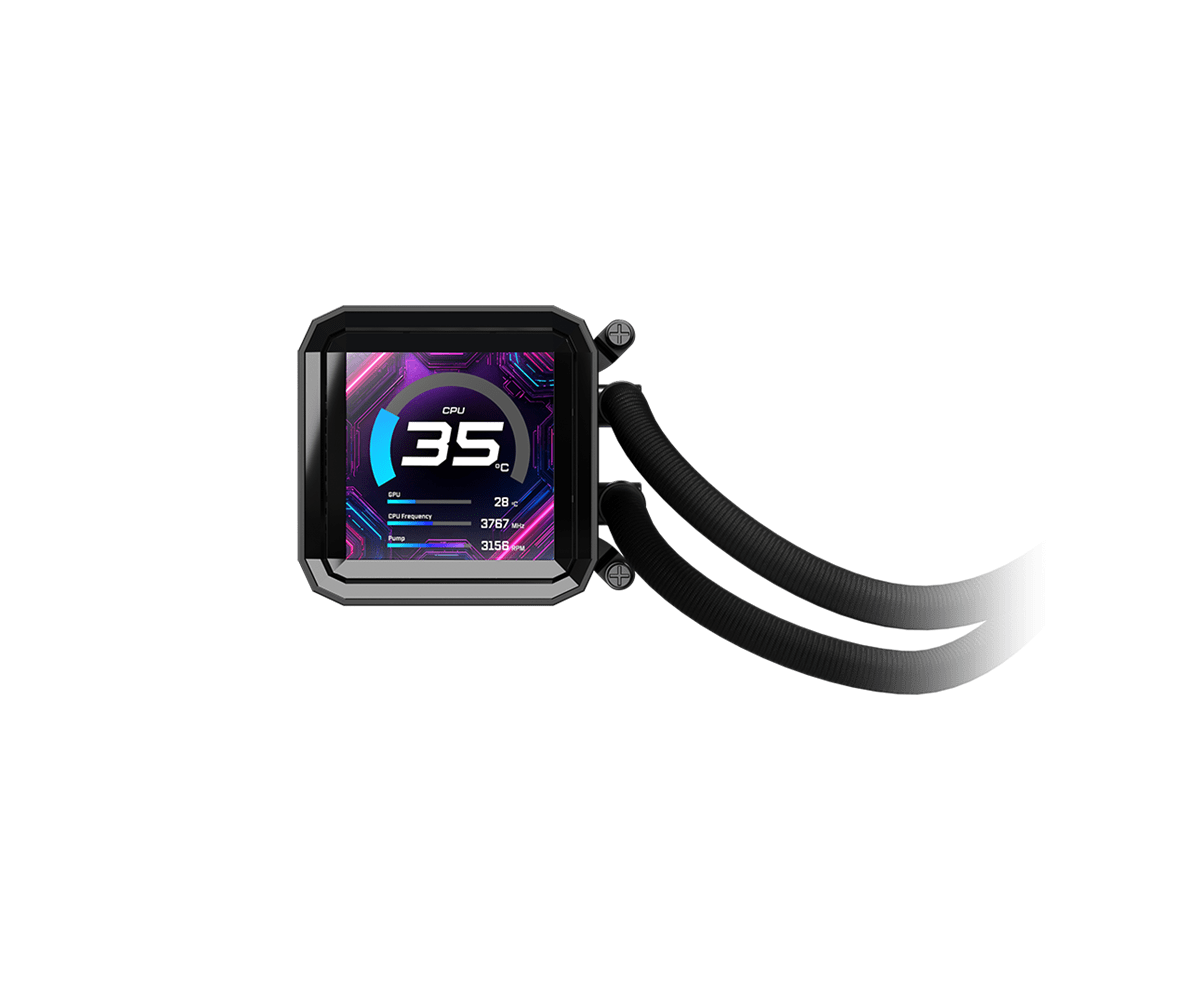

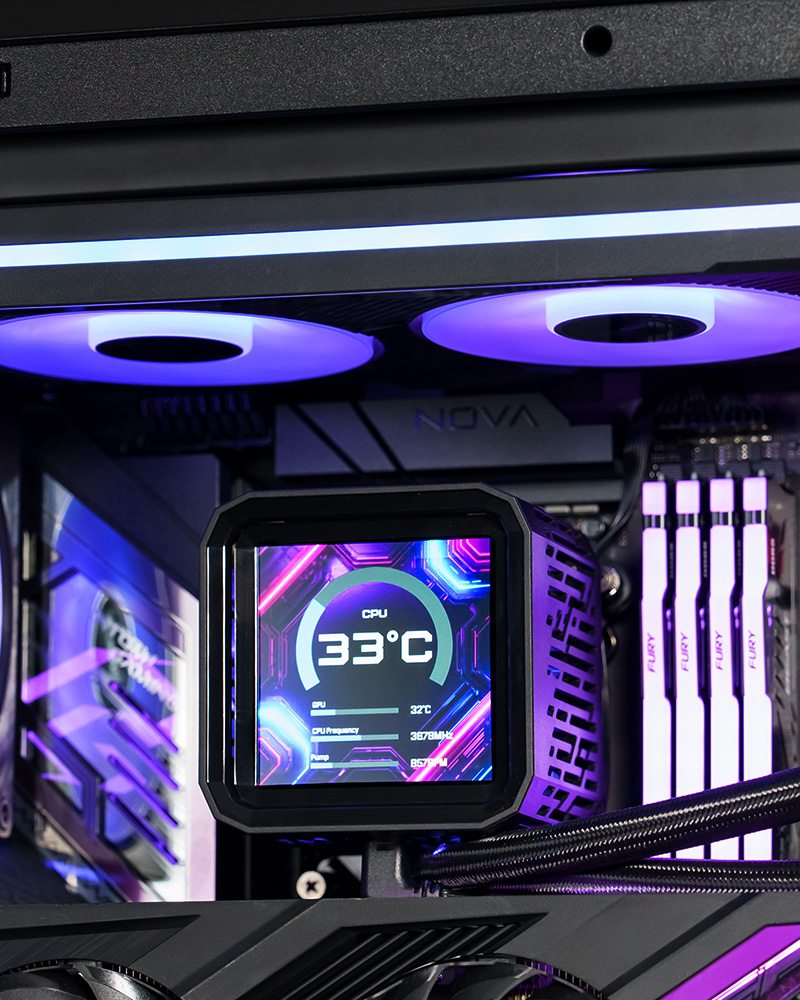

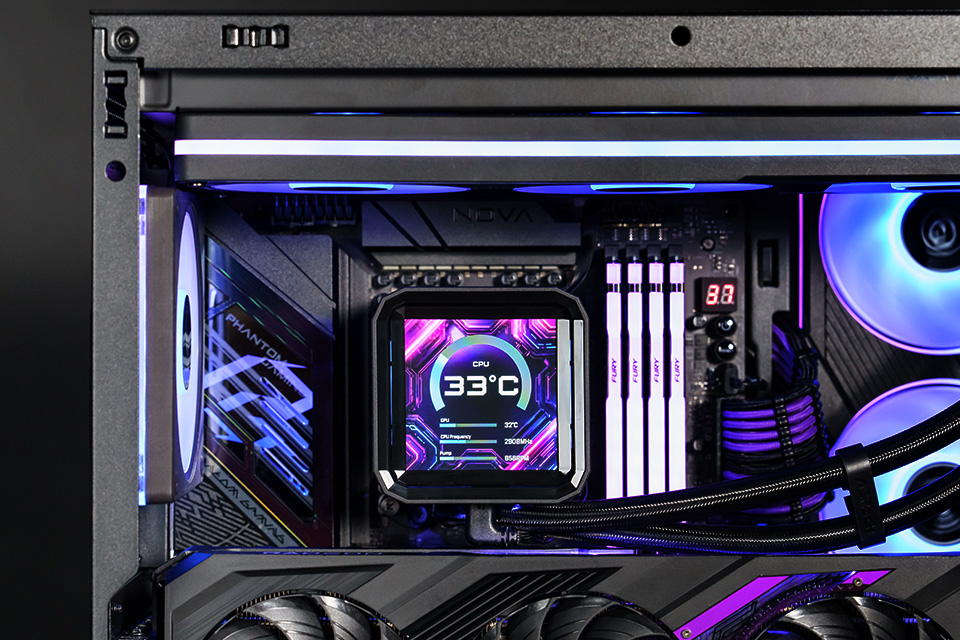

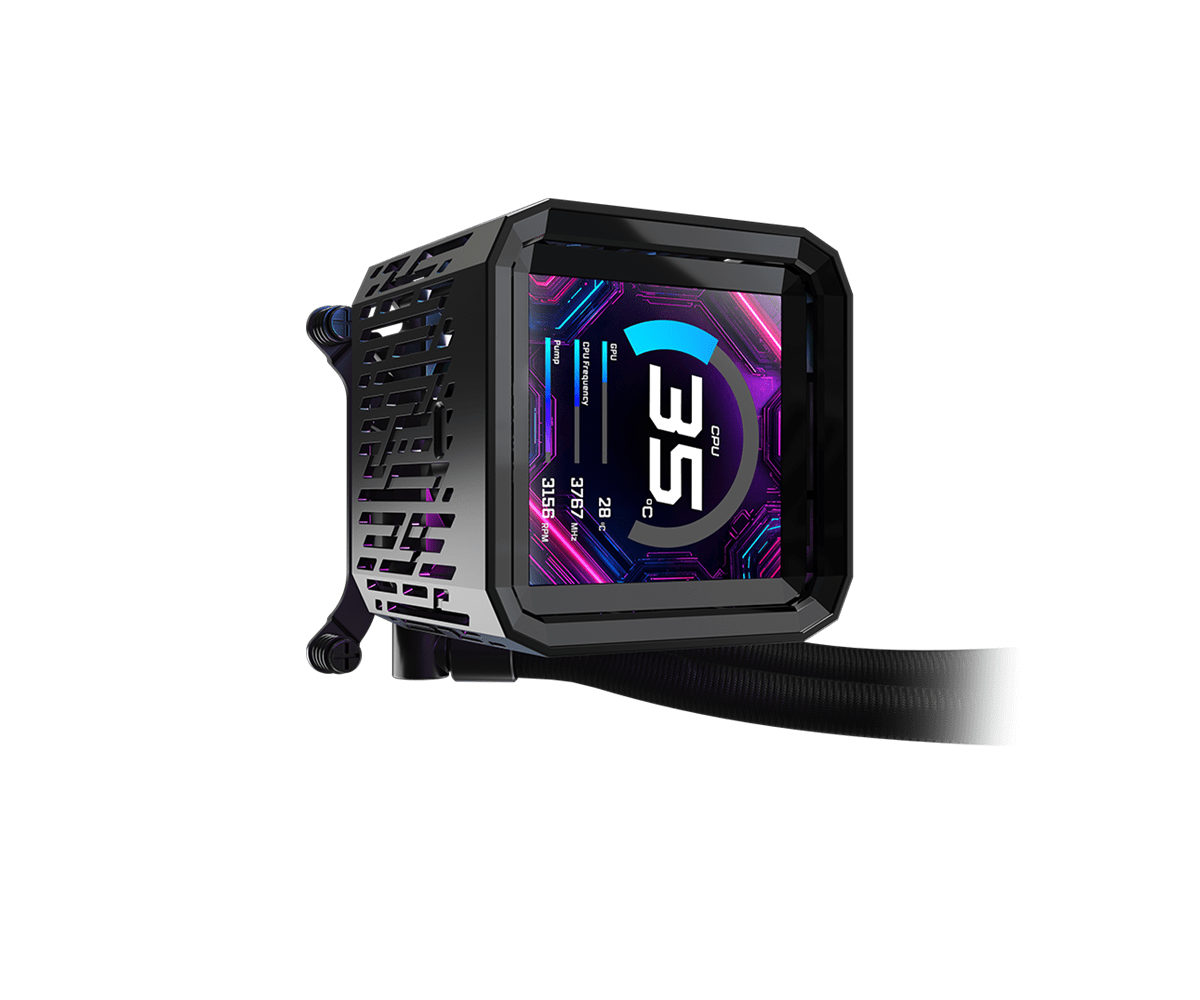

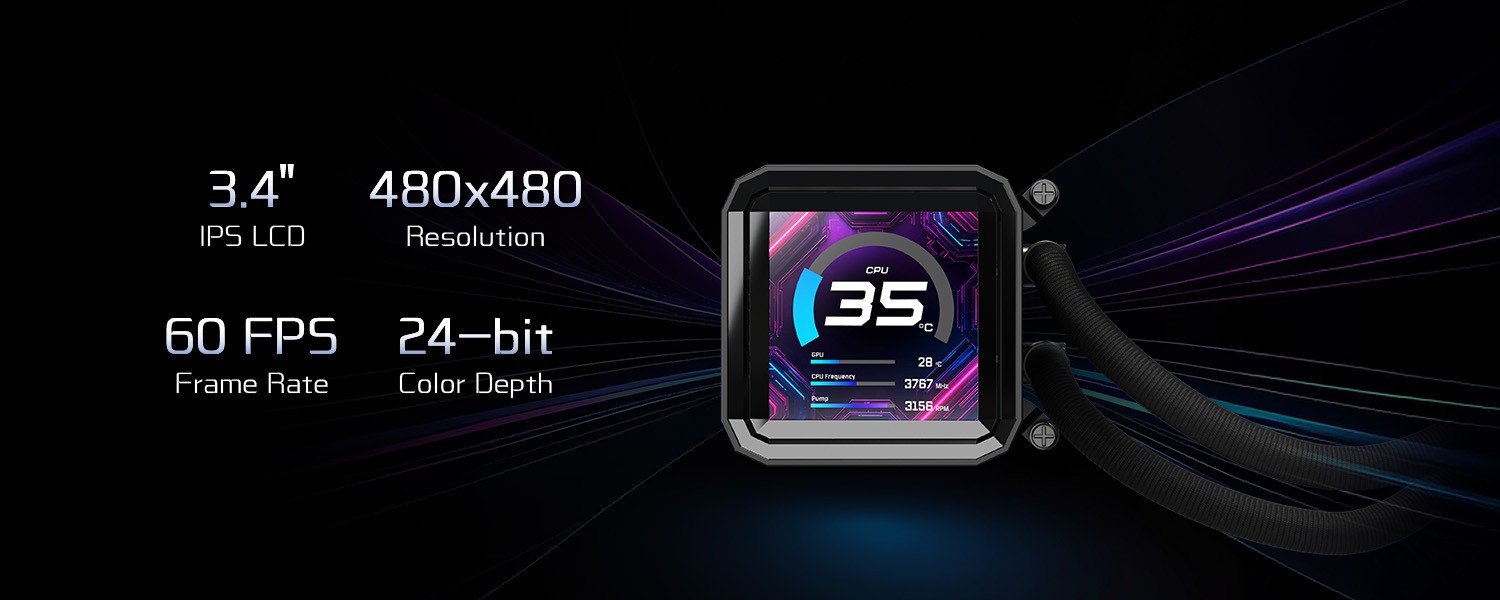

3.4” Full-Color LCD Display
A 3.4" full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.

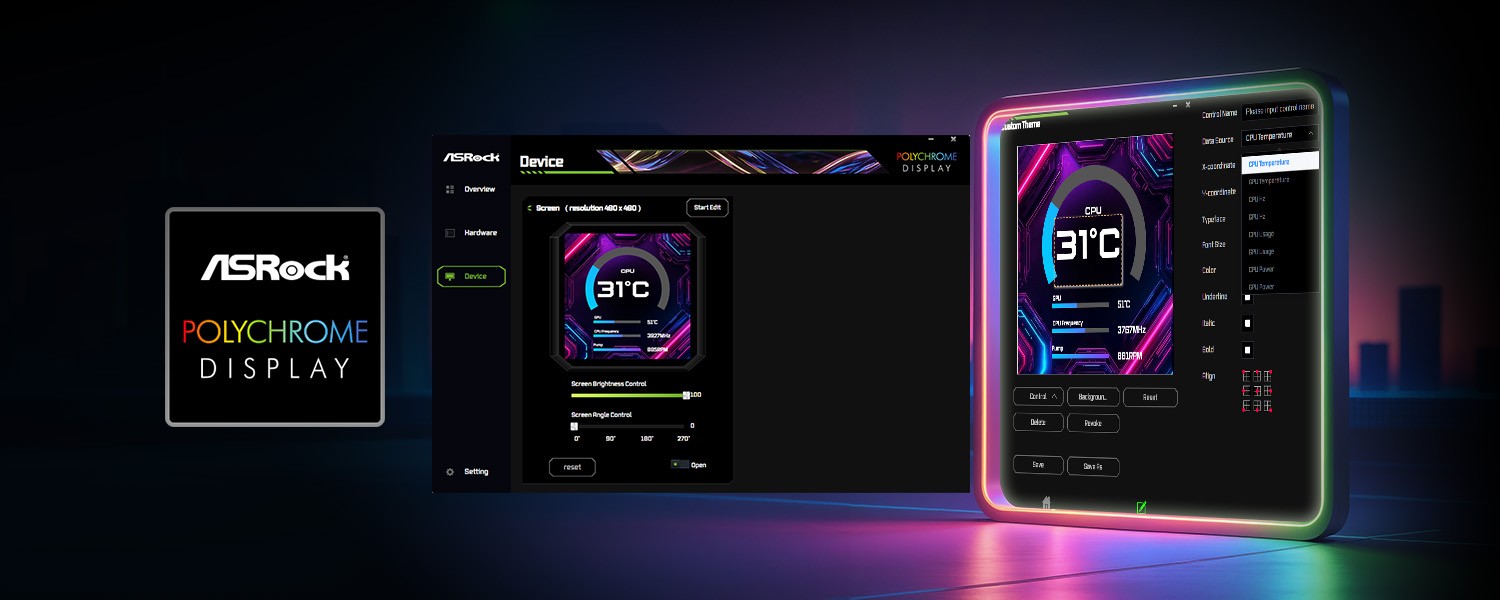

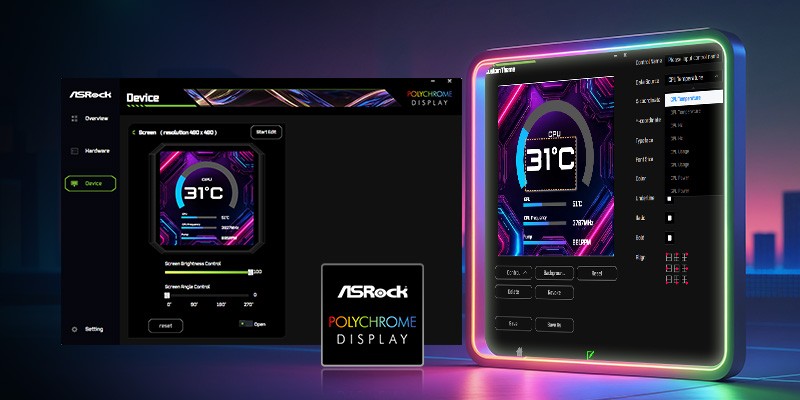

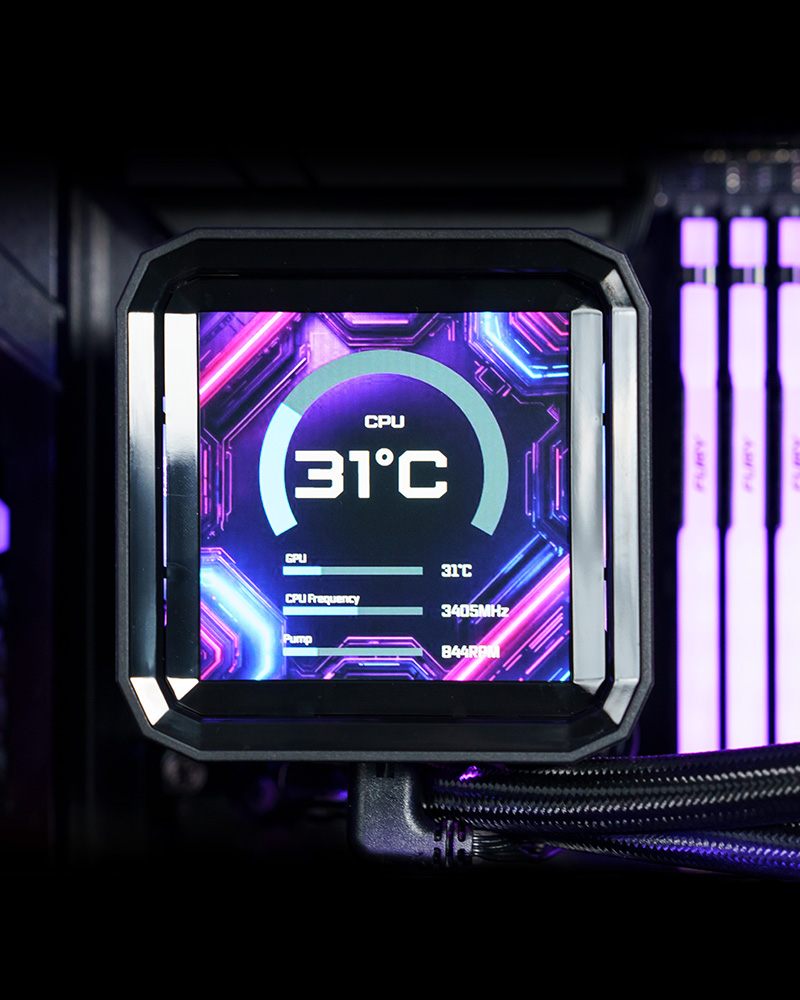

Polychrome DISPLAY

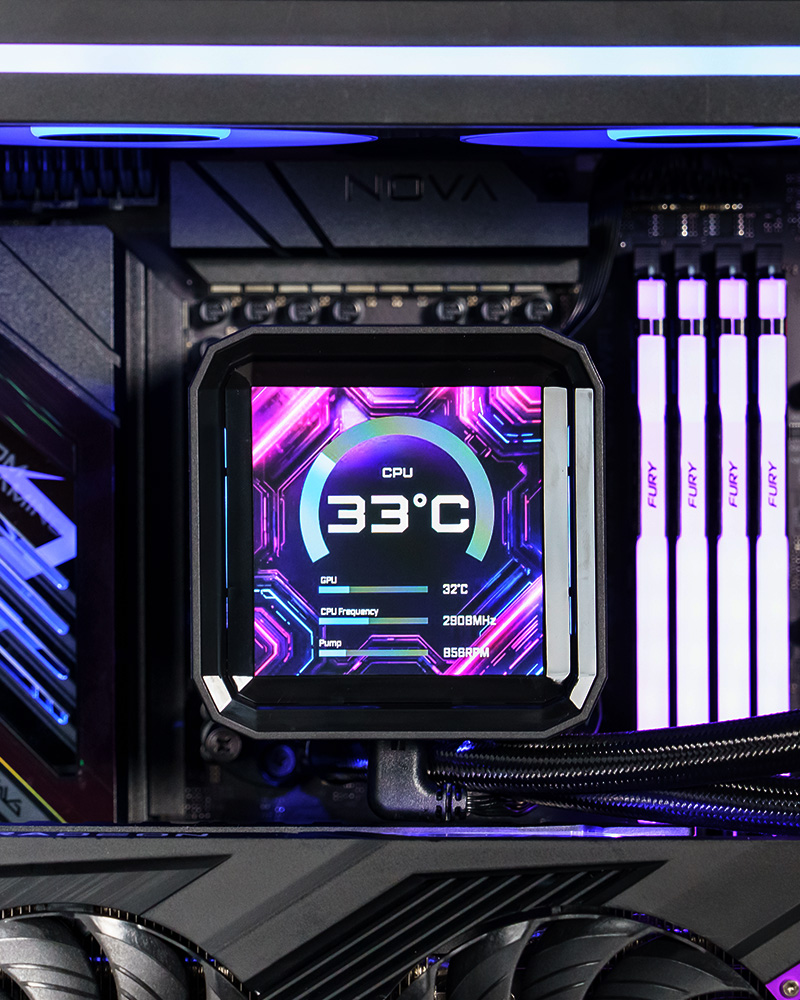

Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support.

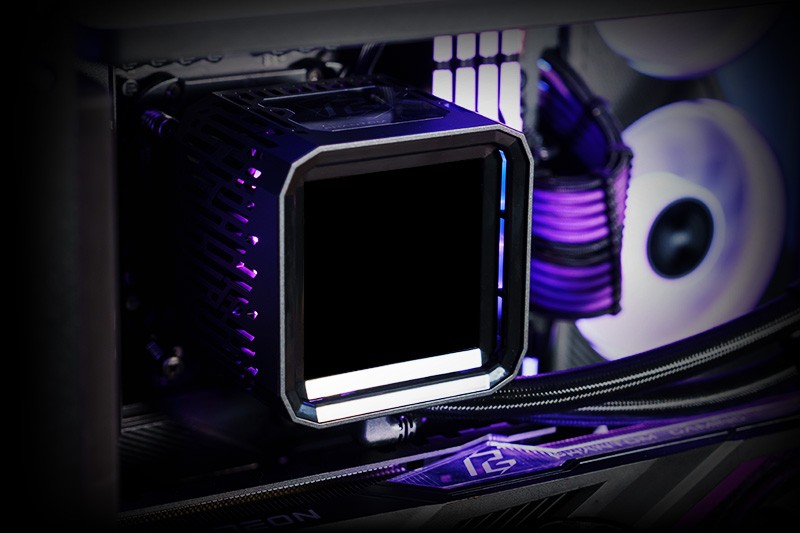

Customizable Animations
Explore built-in animations or import your own for a fully customized display experience.
Cooling

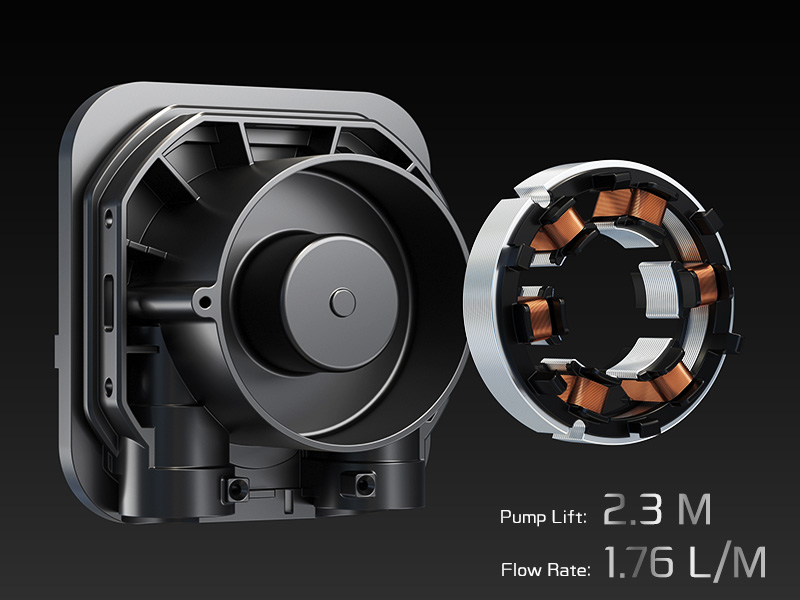

Next-Gen Cooling System
Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.
Continuous Magnetic Field:
Continuous rotating magnetic field for higher energy conversion efficiency.
Low Torque Ripple:
Low torque ripple ensures smooth and stable operation.
Balanced Current Load:
Balanced current distribution minimizes copper loss.
Reduced Core Loss:
Reduced core loss improves overall operating efficiency.
Lower Thermal Output:
Lower thermal output maintains efficiency during prolonged operation.
Simplified Motor Architecture:
No starting capacitors or coils required, improving reliability.

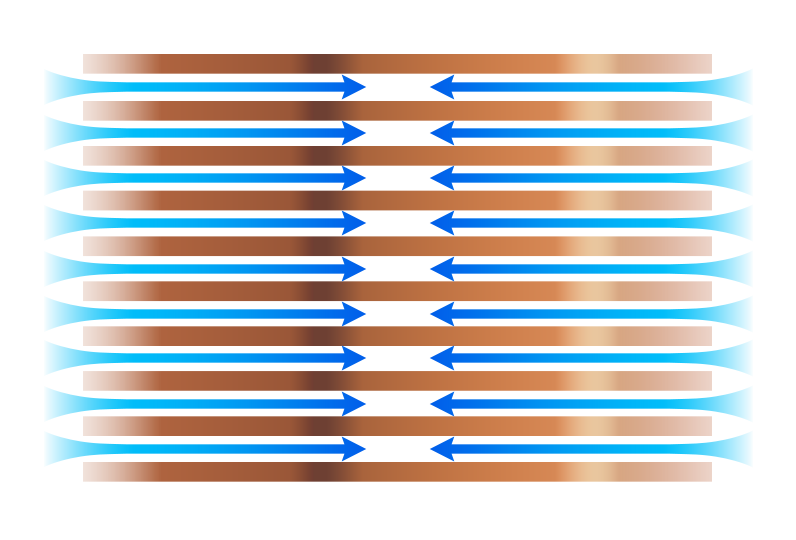

The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency.
Optimized Thermal Fan Design
Integrated ventilation and air-guide design channel airflow directly to heat-critical zones for maximum cooling efficiency.

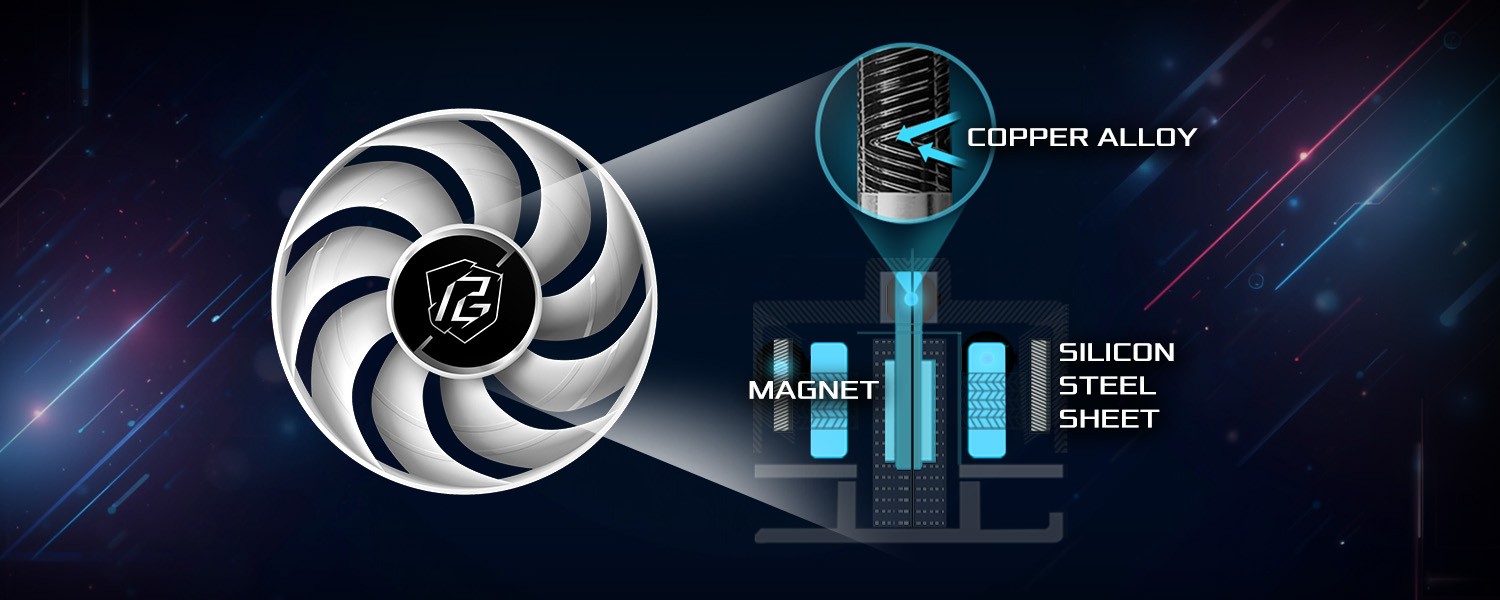

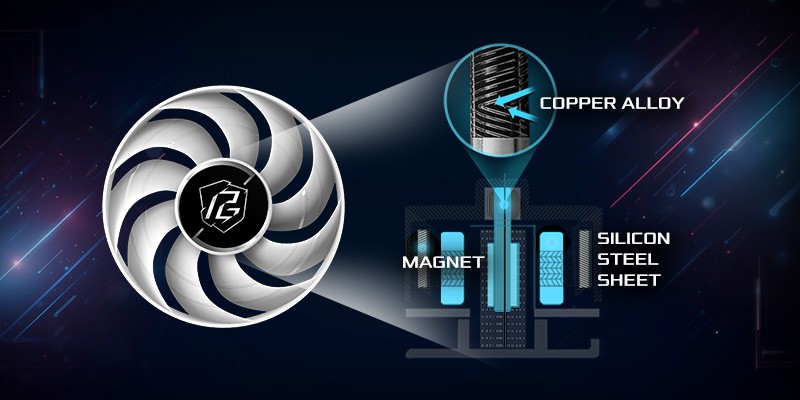

Fluid Dynamic Bearing minimizes friction and vibration for whisper-quiet, stable cooling and long service life.
![Optimized Thermal Fan Design [menu-3]](/CPU-Coolers/features/StripedRingFan-Phantom Gaming 360 LCD.jpg)
![Optimized Thermal Fan Design [menu-3]](/CPU-Coolers/features/StripedRingFan-Phantom Gaming 360 LCD_mobile.jpg)

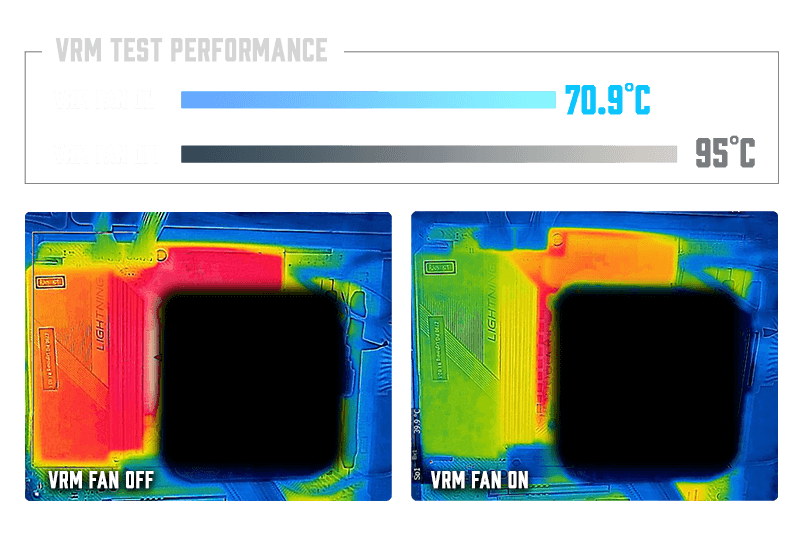

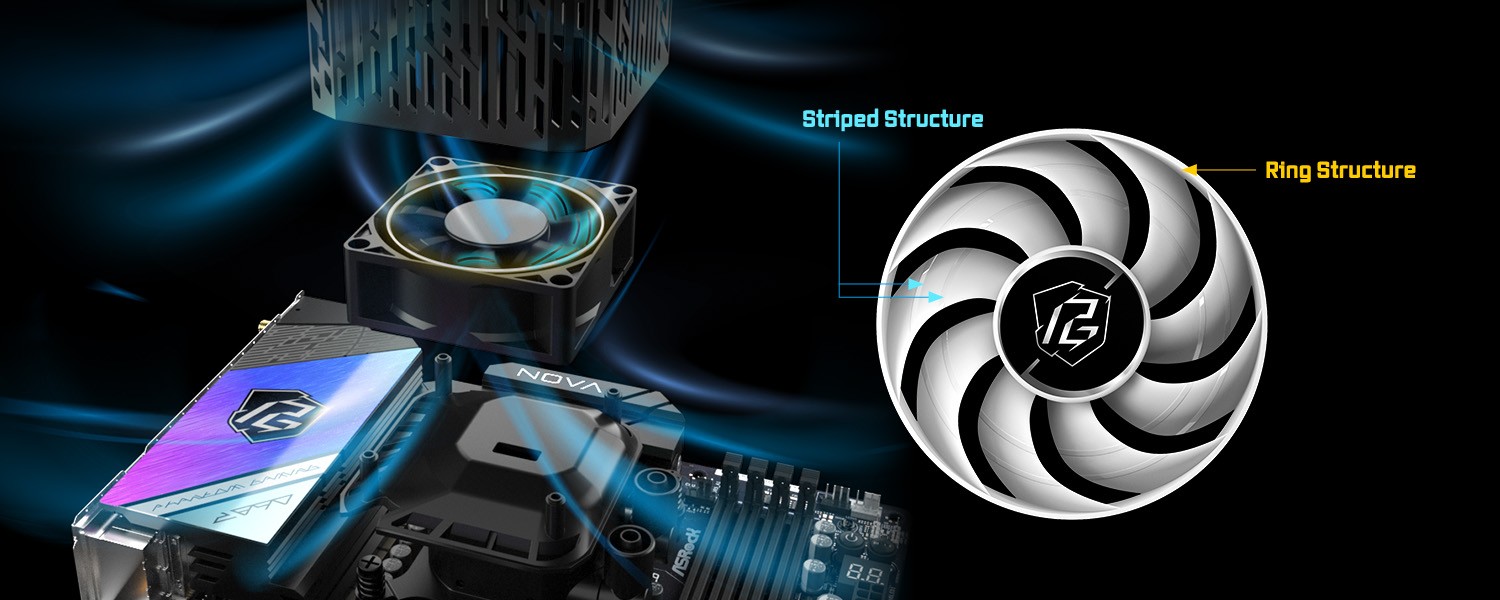

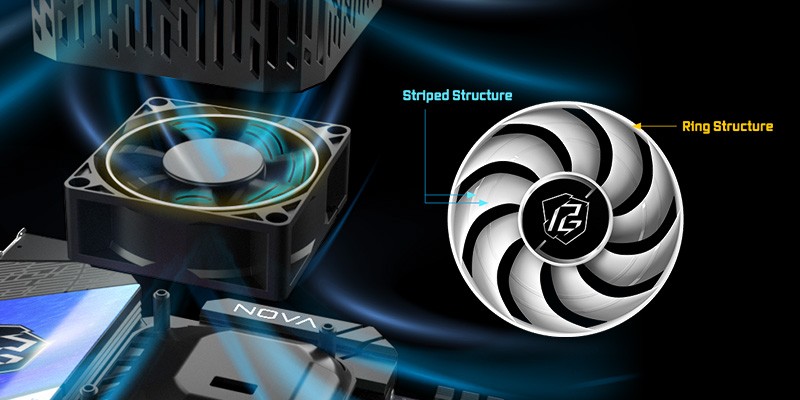

The Striped Ring fan design features reinforced blades engineered to optimize airflow across both the VRM module and the radiator, driving high-volume intake to keep power delivery components cool and stable, while generating strong lateral airflow for deep fin penetration and maximum radiator cooling efficiency.
![Optimized Thermal Fan Design [menu-3]](/CPU-Coolers/features/Long-LastingFDBfan-Phantom Gaming 360 LCD.jpg)
![Optimized Thermal Fan Design [menu-3]](/CPU-Coolers/features/Long-LastingFDBfan-Phantom Gaming 360 LCD_mobile.jpg)

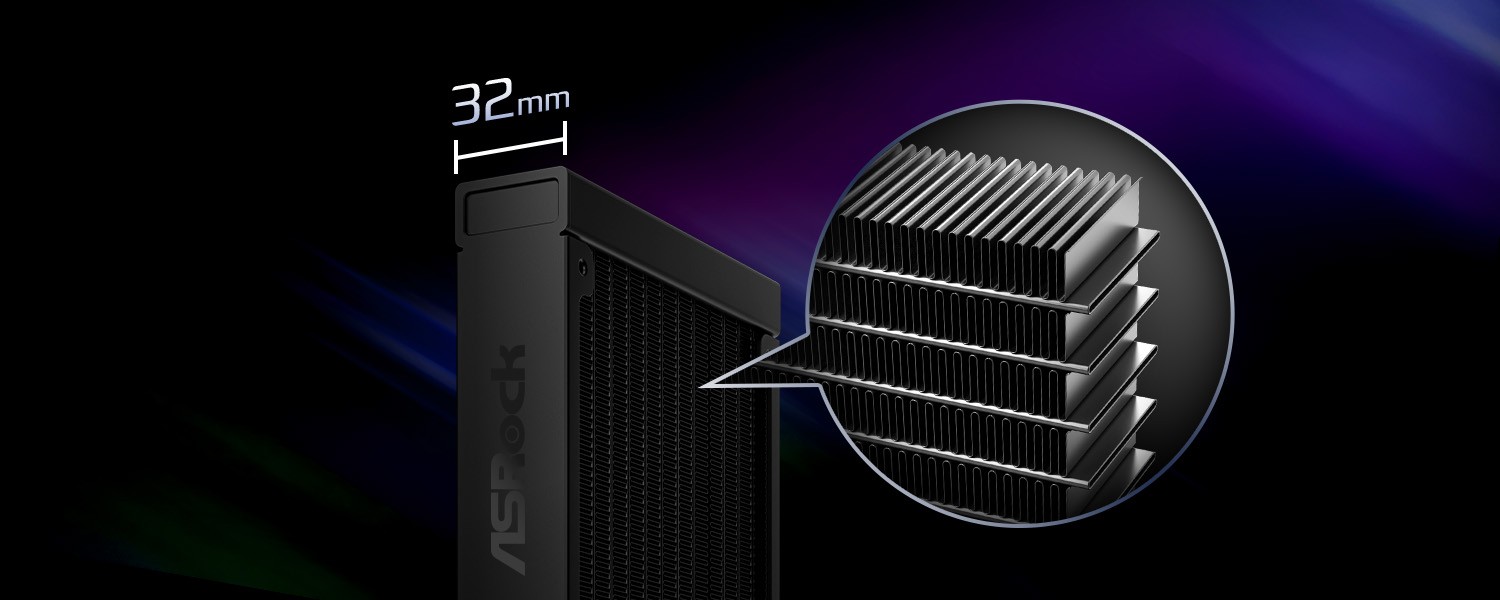

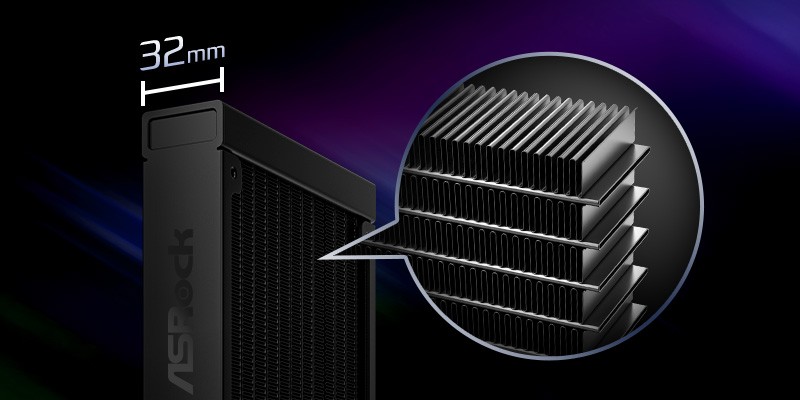

Enhanced Flow & Surface Cooling System
A 32mm-thick radiator maximizes heat dissipation and cooling efficiency, while 7mm reinforced tubing increases coolant volume for superior thermal performance.

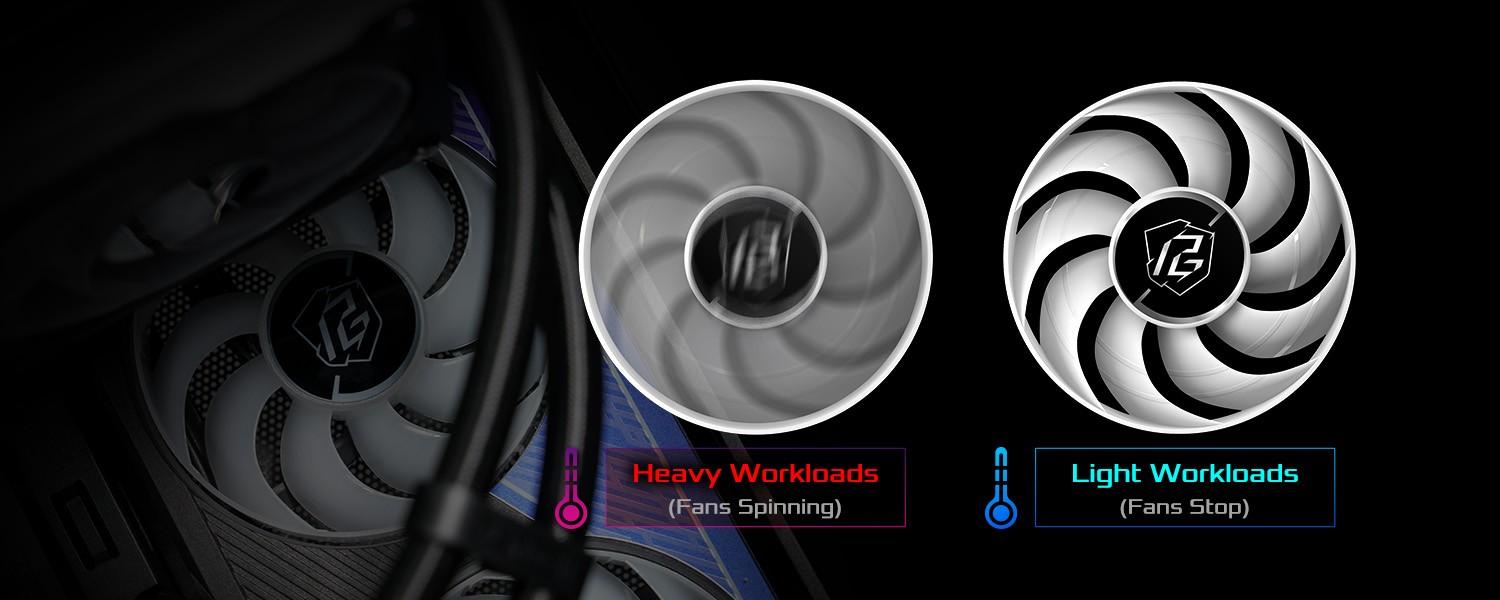

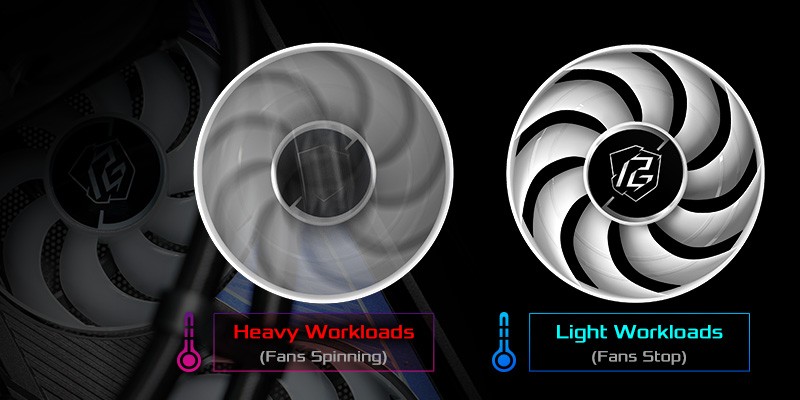

0dB Silent Cooling Technology
Fan stops completely under low load for absolute silence and extended lifespan.
Stylish Design

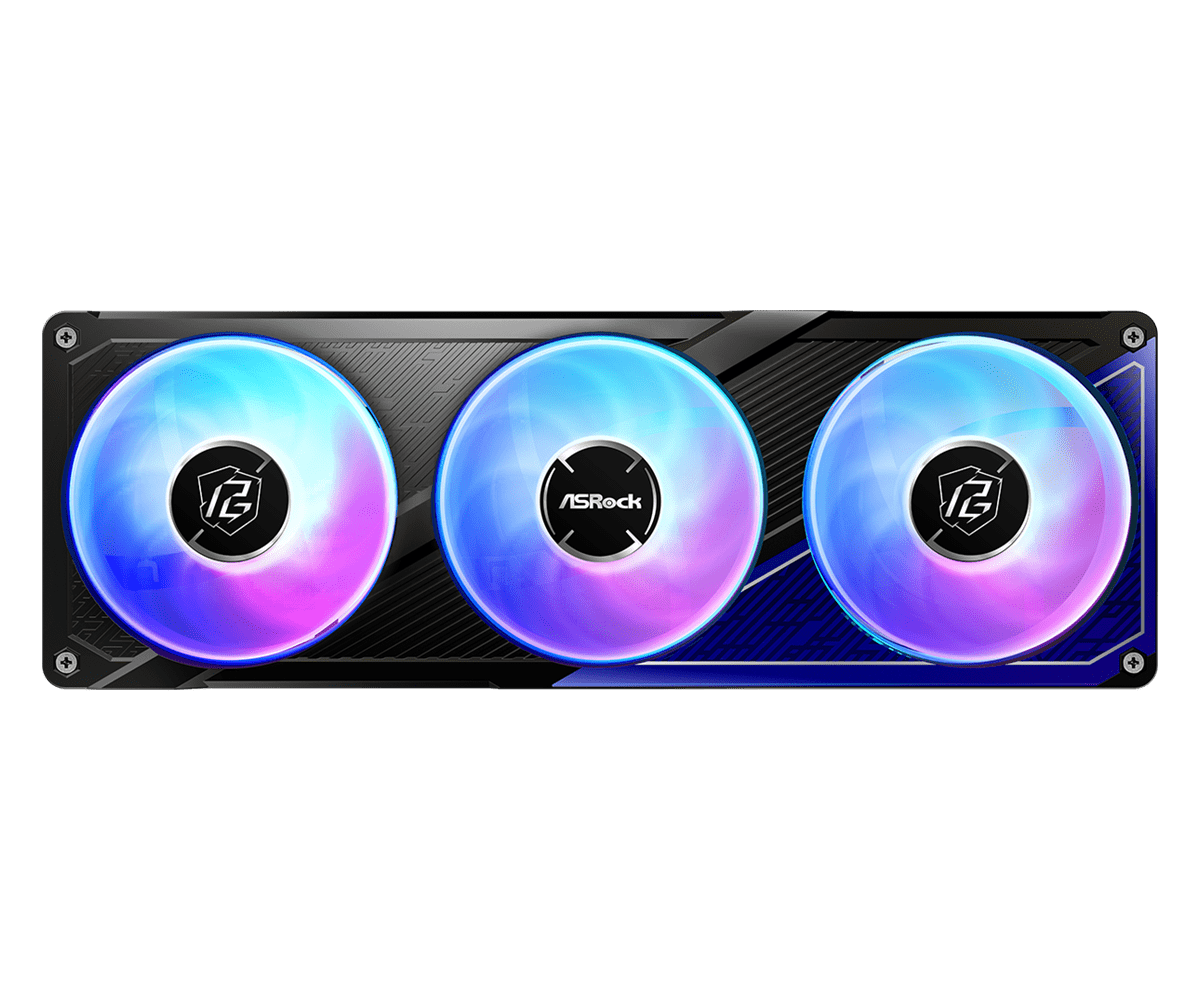

360° Halo ARGB Fan with Unified Frame
Seamless ARGB Halo Frame
Vibrant ARGB Lighting
Streamlined Cable Design

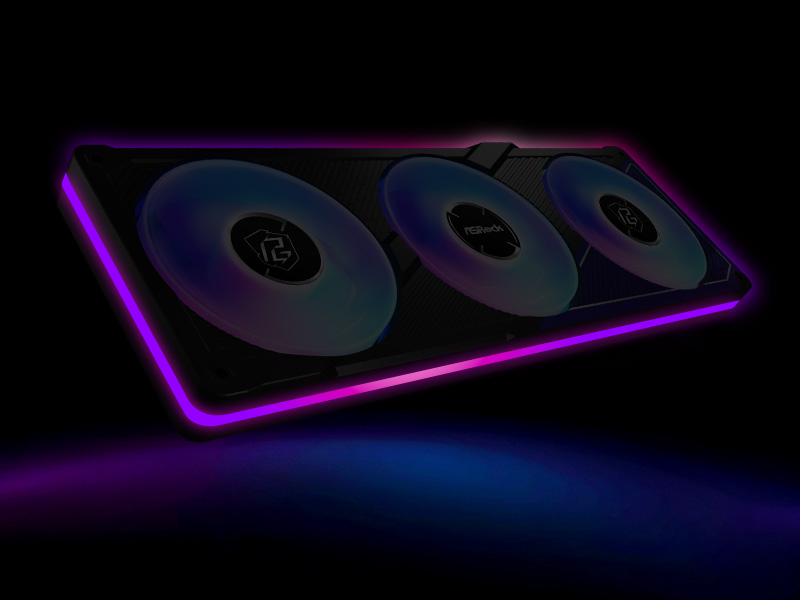

Seamless ARGB Halo Frame
Streamlined mounting meets seamless ARGB halo for vibrant, uniform illumination that transforms your rig into a true showcase.
Vibrant ARGB Lighting
Delivers richer illumination across every zone with 16 LEDs in the water block, 9 in the fan hub, and 60 in the halo frame for smooth, vibrant lighting effects.

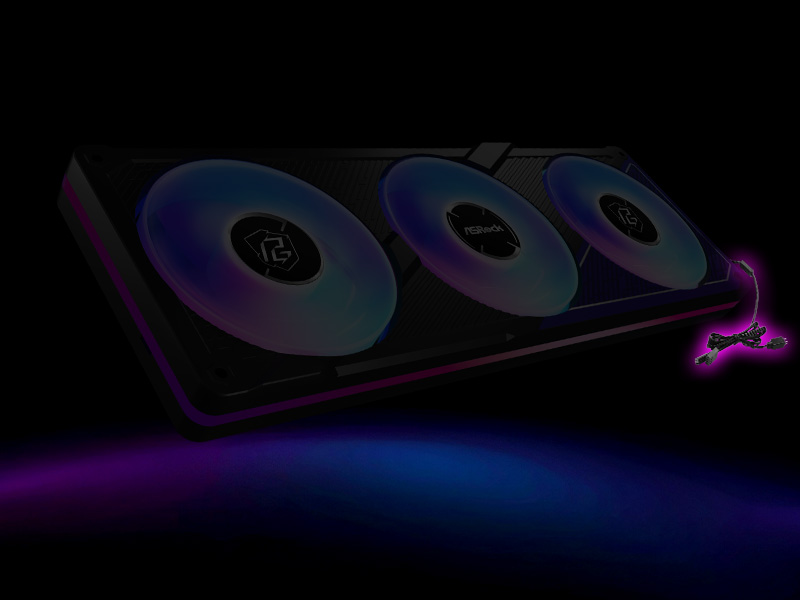

Streamlined Cable Design
The unified fan-frame structure allows all fans to operate through a single cable with separate PWM and ARGB connectors, reducing cable bulk and simplifying installation.

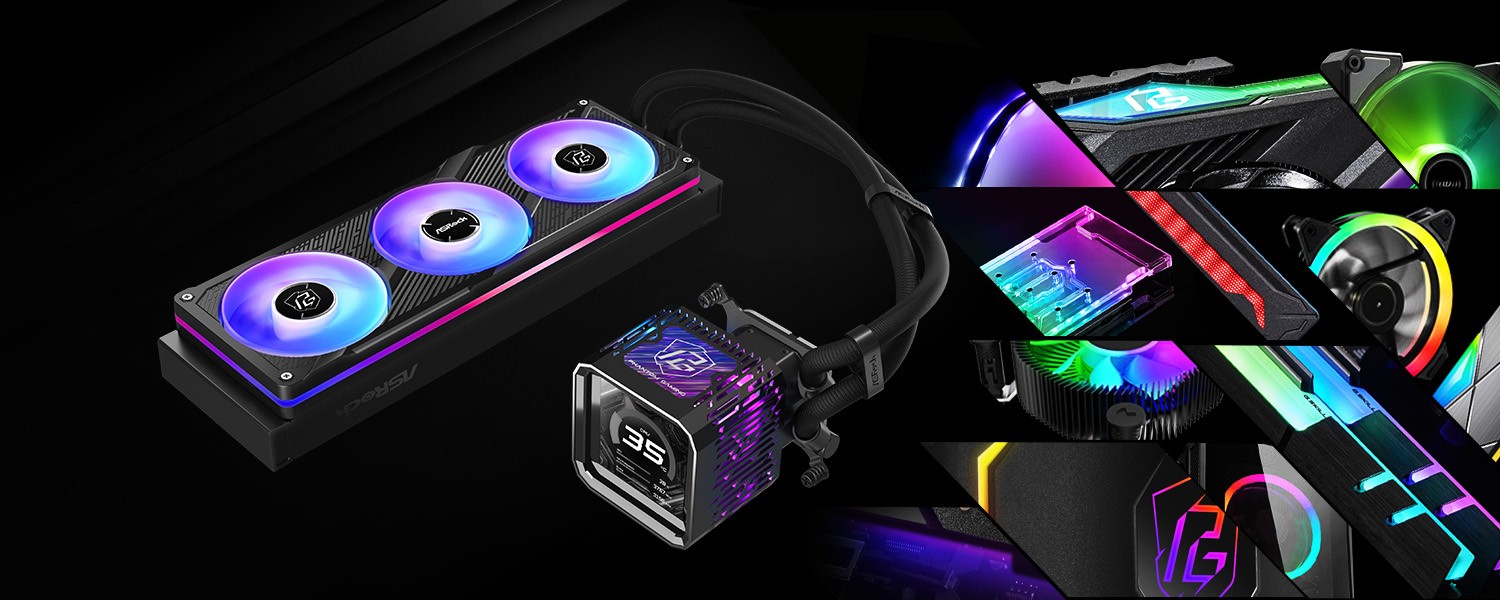

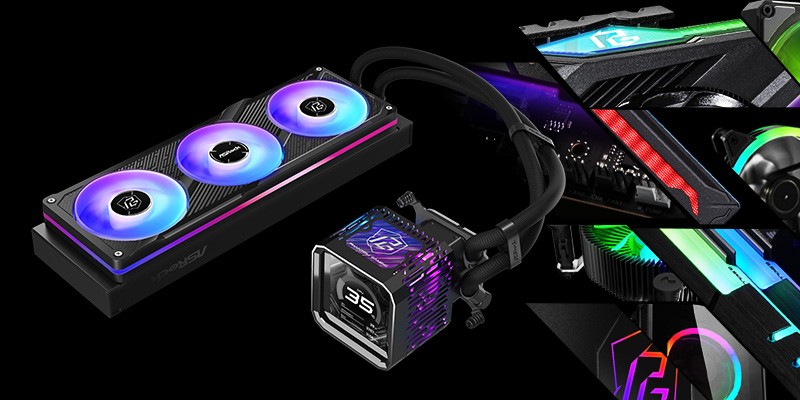

POLYCHROME RGB
Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support, experience perfectly synchronized, full-system RGB illumination with seamless control.

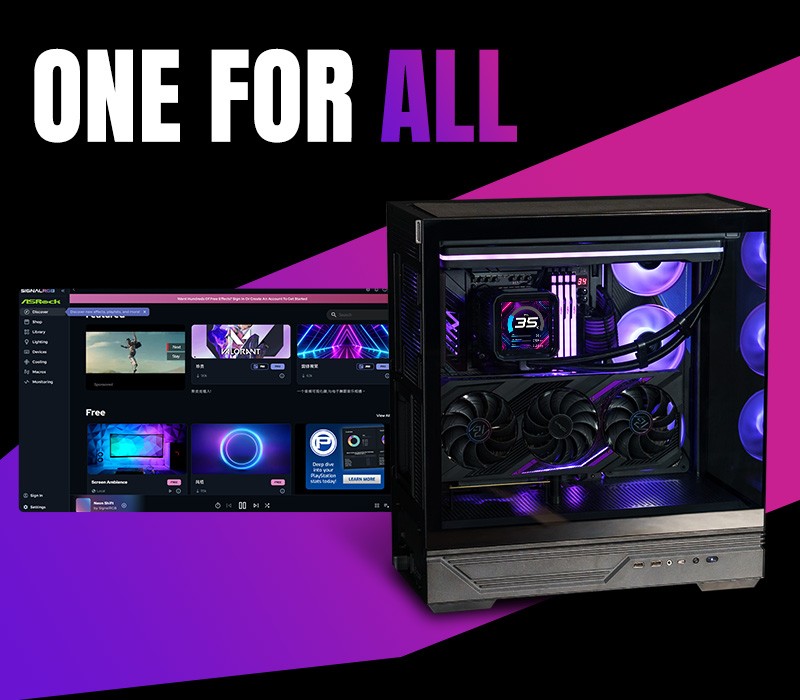

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.
DIY Friendly

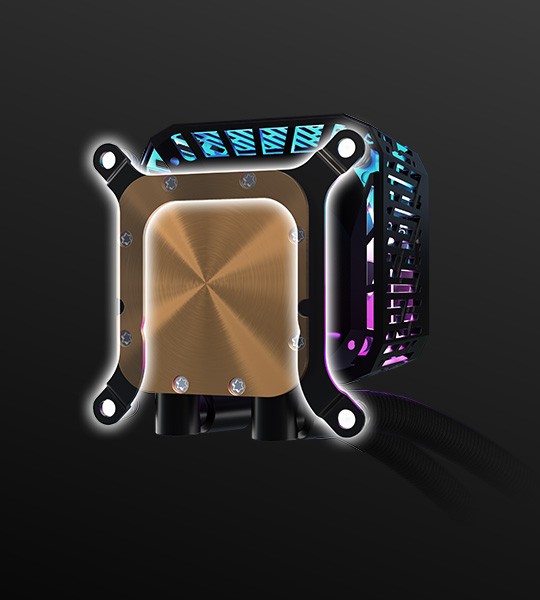

UNIVERSAL BRACKET
Minimal-step design enables fast, simple installation across multiple Intel® & AMD® platforms.

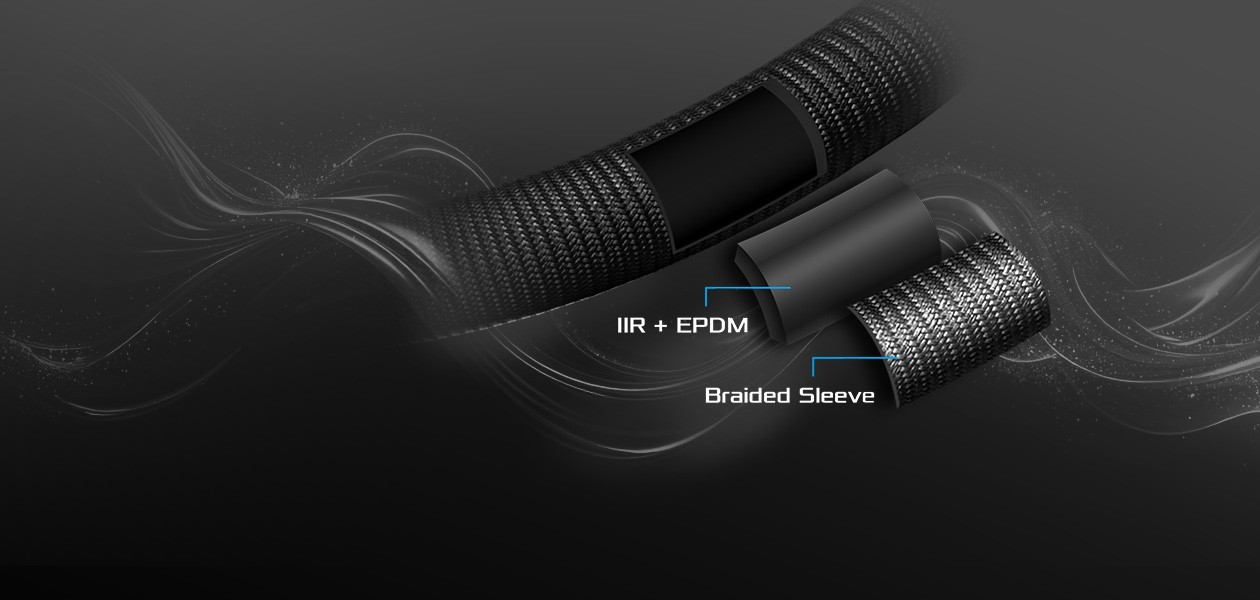

PREMIUM DURABLE TUBING
IIR+EPDM core resists coolant evaporation and deformation, with braided sleeve reinforcement for durability, protection, and a clean high-end look.

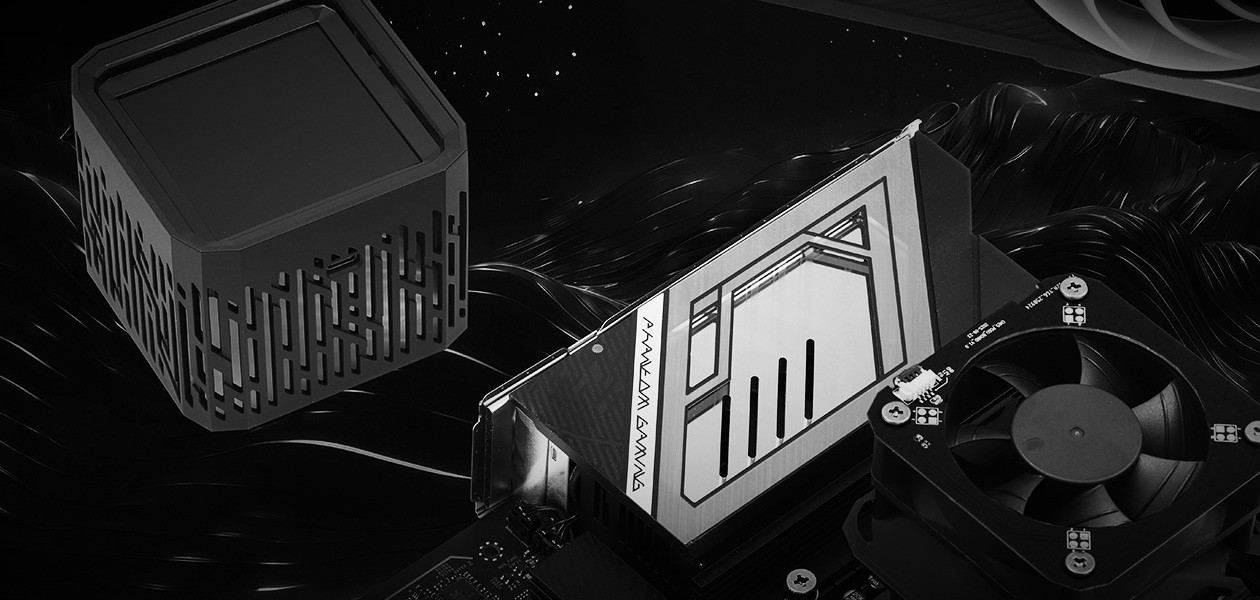

MAGNETIC WATER BLOCK
Detach and rotate effortlessly for quick maintenance and flexible installation.

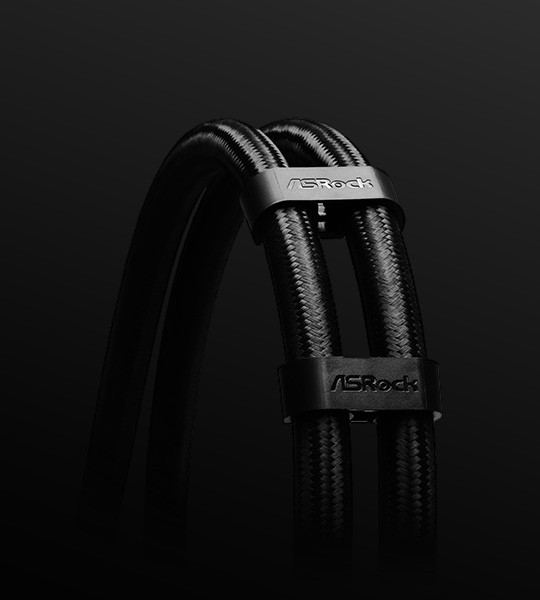

MULTIFUNCTIONAL TUBE CLIPS
Secure tubing placement, simplify installation, and maintain a clean, organized build.

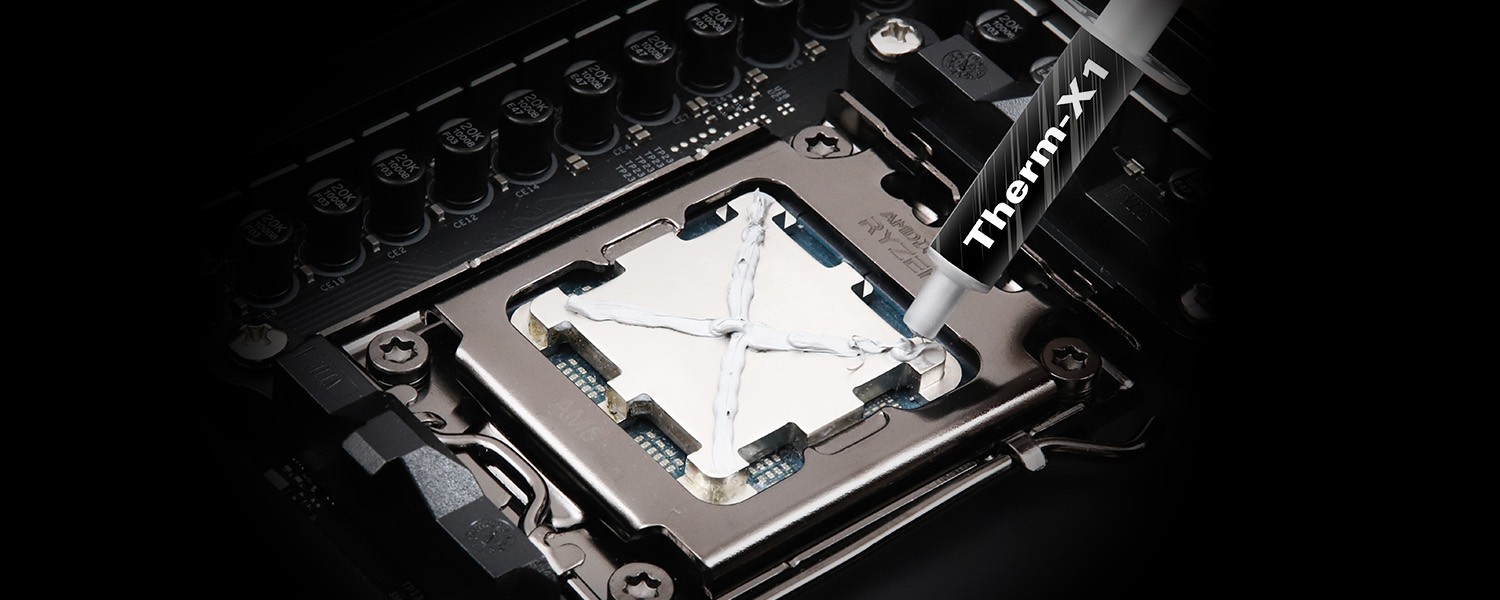

ASRock Therm-X1
ASRock Therm-X1 Thermal Grease
High thermal conductivity enables efficient heat transfer, enhancing system stability and extending CPU lifespan.

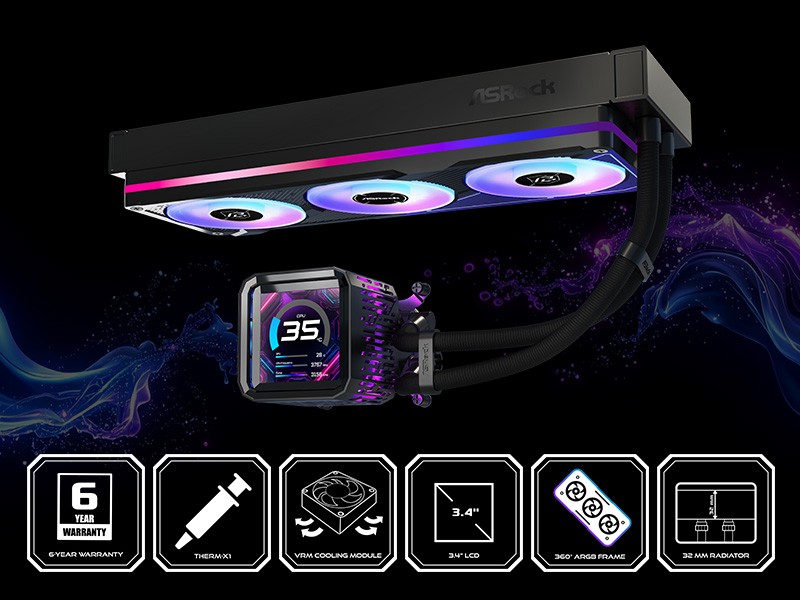

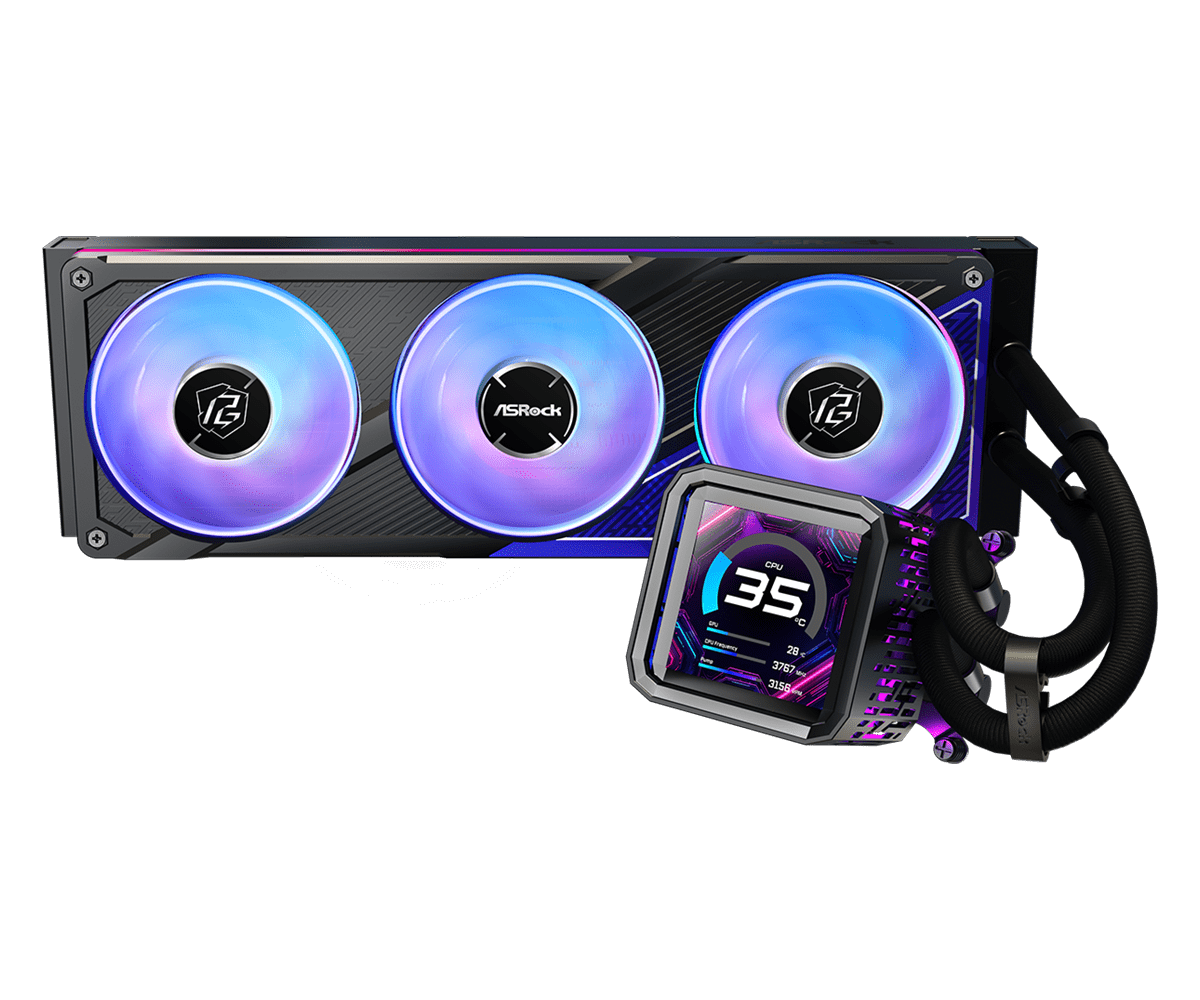

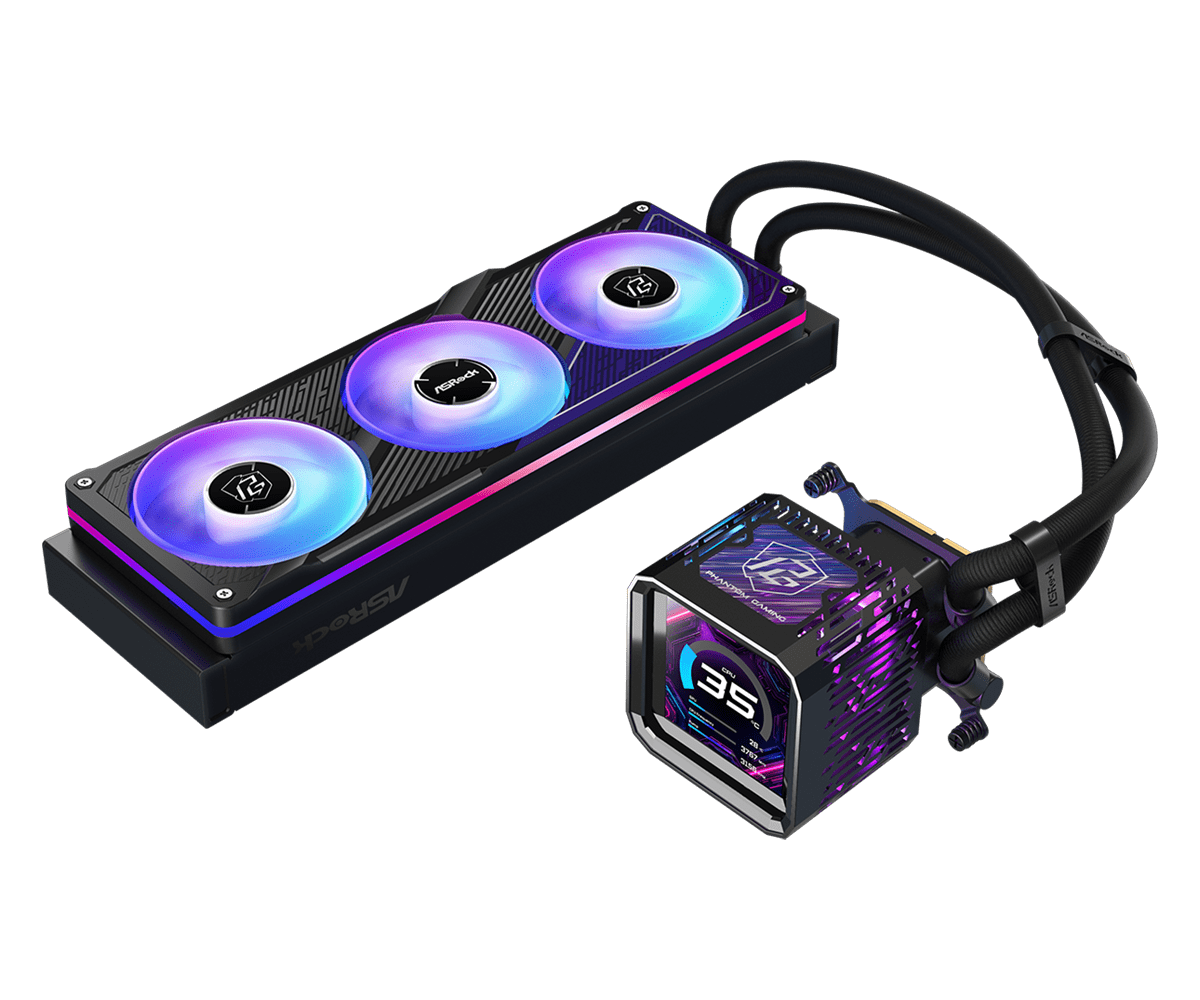

Phantom Gaming 360 LCD
PRODUCT BRIEF:
- 3.4” Full-Color LCD Display
- 3-Phase 6-Slot Pump
- Dual-inlet Cooling Path
- 360° Halo ARGB Fan
- High-performance FDB Fans
- RGB Lighting Ecosystem
- 0dB Silent Cooling
- IIR+EPDM Tubing
- Effortless Installation
- High Conductivity Thermal Grease
- Reliable 6-Year Warranty
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
- Model Number90-APGA36-BAAGA5CompatibilityAMD: AM5, AM4
Intel: LGA1851, 1700Water BlockDimension：(L)100.4 x (W)86 x (H)107.6 mm

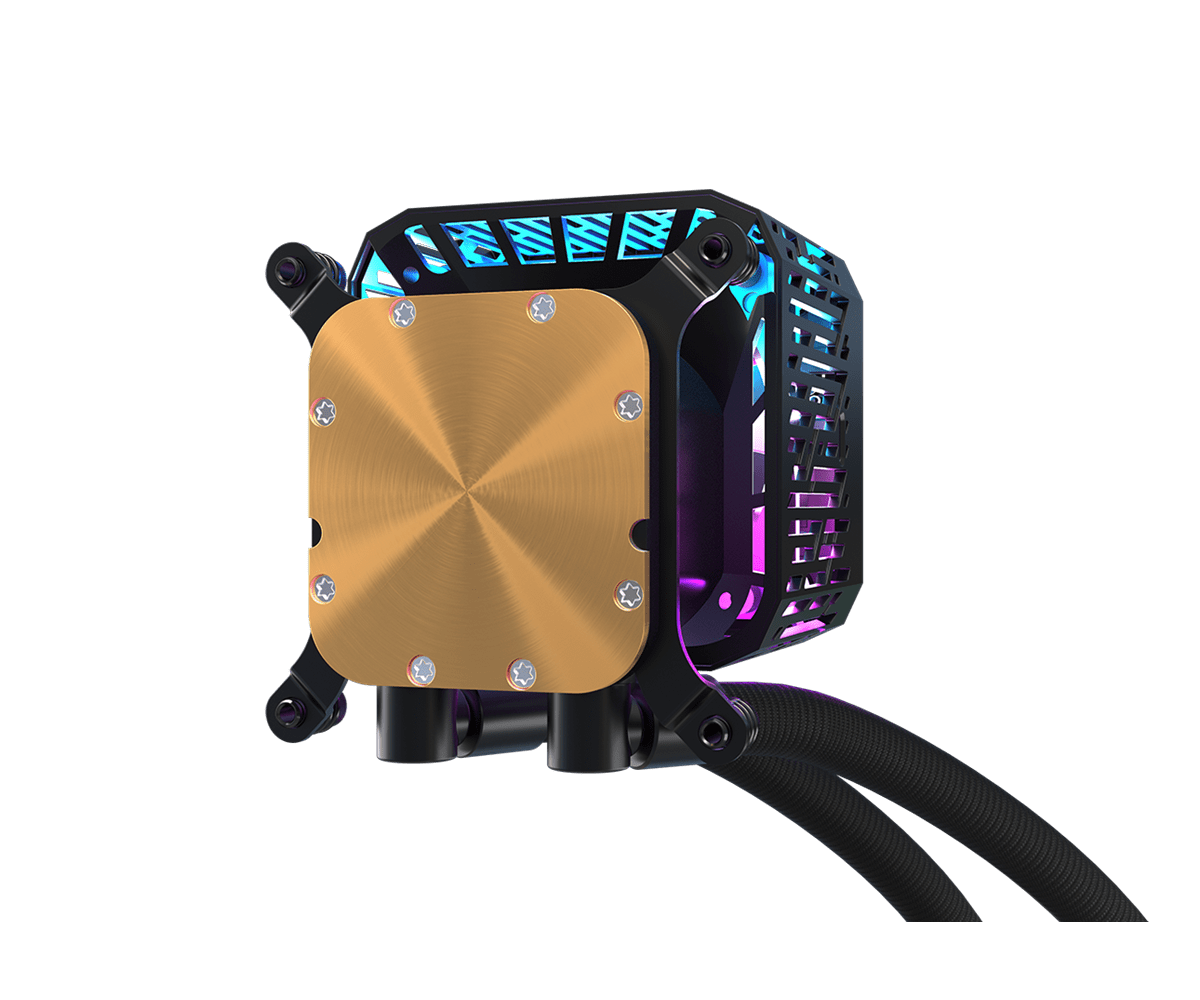

Material (Cold Plate)：Copper
LEDs ：ARGBRadiatorDimension：(L)397 x (W)120 x (H)32 mm
Material：AluminumPumpSpeed：1200 - 3100 ± 10% RPM
Current/ Voltage：0.38A/ 12V
Connector：PWM (4-Pin)VRM FanDimension：(L)70 x (W)70 x (H)25 mm
Speed：(Max.) 3000 ± 10% RPM
Connector：PWM (4-Pin)
Current/ Voltage：0.12A/ 12VRadiator FanDimension：(L)362 x (W)123 x (H)28 mm
Speed：0 - 2400 ± 10% RPM
Air Flow：(Max.) 61.28 CFM
Air Pressure：(Max.) 3.11 mmH20
Noise：(Max.) 31.4 dB(A)
Connector：PWM (4-Pin)
Current/ Voltage：0.84A/ 12V
Bearing：Fluid Dynamic Bearing
LEDs ：ARGB Gen1ScreenType：IPS LCD
Size：3.4"
Resolution：480 x 480
Display Colors：24-bit
Brightness：250 cd/m²
Refresh Rate：60 Hz
Frames Per Second (FPS)：60 FPS
Connector：USB Type-C to Motherboard 9-PinTubingMaterial：IIR + EPDM
Length：450mm
WarrantyAIO Cooler Module：6 years
Display Module：2 years
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
